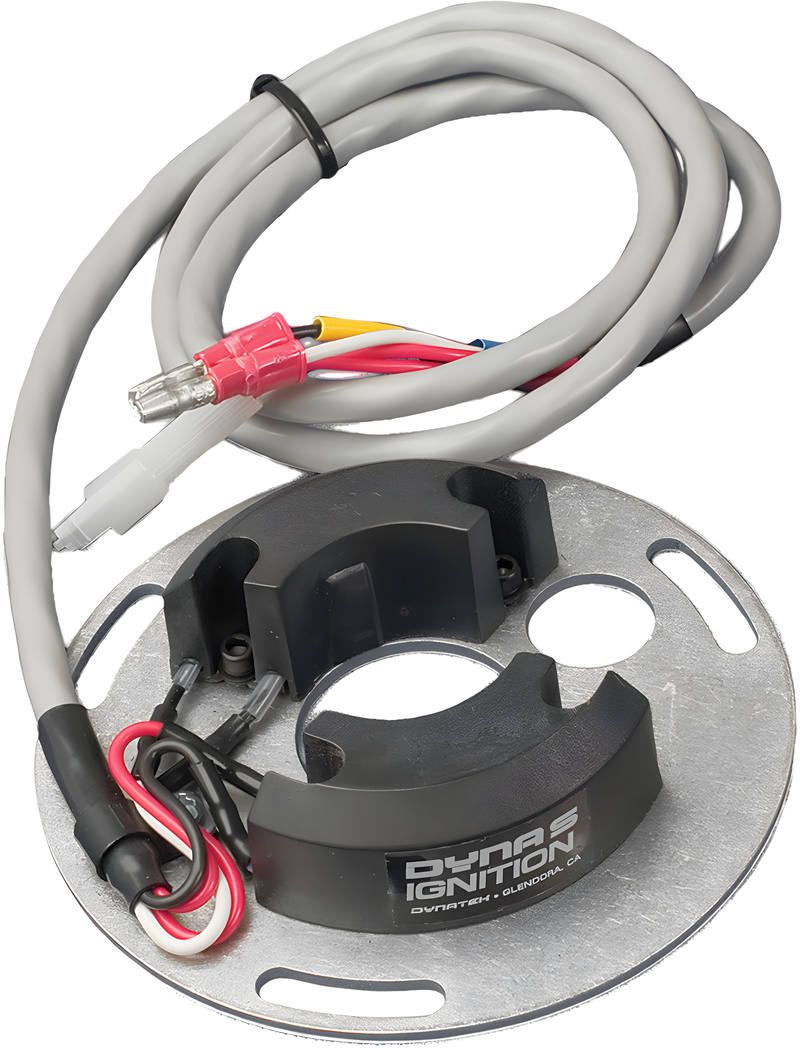

Dynatek S Ignition System - Single Fire 1970 & Later — Harley-Davidson Electra Glide, Softail Heritage Classic, Electra Glide Classic (1970-2026)

Dynatek S single-fire electronic ignition system for 1970 and later Harley-Davidson motorcycles. A self-contained system that mounts behind the stock ignition cover, maintains the original spark advance curve, and has been used by top racers for over two decades.

Features

• Electronic single-fire ignition
• Mounts behind factory ignition cover
• Maintains original spark advance curve
• Uses magnetic rotor with stock advancer
• Must be used with 5 ohm coils for street operation

Specifications

• Brand: Dynatek
• Manufacturer Part #: DS6-2
• UPC: 840094313644
• Length: 5.25 in
• Width: 7.5 in
• Height: 2.6 in
• Weight: 0.7 lbs

Fitment

Fits Harley-Davidson motorcycles 1970 and later.

Frequently Asked Questions

What coils do I need to use with this ignition system?

You must use 5 ohm coils for street operation. Using incorrect coil resistance will cause performance and starting issues.

Does this system change the spark advance curve?

No — the Dynatek S uses the original magnetic rotor and spark advancer, so the factory advance curve is maintained.

Is this street legal everywhere?

Not legal for use in California on pollution-controlled vehicles. Check your state and local emissions laws before installing.

Does it mount inside the engine?

No — the entire system is self-contained and mounts completely behind the factory ignition cover.
