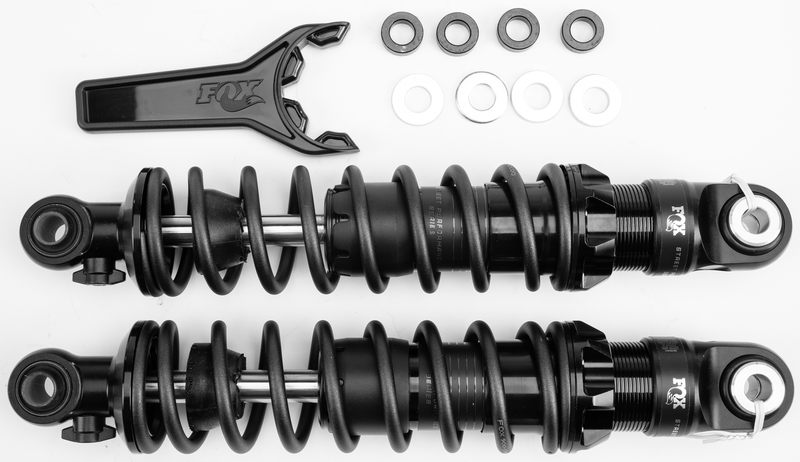

FOX IFP-QSR Shocks for HD Dyna Models - 14" Shocks FLT HVY REB Adjus — Harley-Davidson (1984-2025)

FOX IFP-QSR piggyback shocks for Harley Dyna models, engineered with model-specific ride tuning and three-position quick-switch rebound and compression adjustment. Gas-charged mono-tube construction with internal floating piston delivers consistent damping across the entire suspension travel.

Features

• Gas-charged mono-tube with internal floating piston
• 1.5" 6061-T6 aluminum body, type III hard anodized
• Three-position quick-switch rebound and compression control (soft, medium, firm)
• Advanced high-flow, velocity-sensitive damping
• Hand-adjustable spring preload
• 1/2" hard chrome shaft with low friction super-finish
• Fully serviceable and rebuildable
• Recommended for up to 240 lbs total ride load

Specifications

• Brand: FOX
• Manufacturer Part #: 897-27-216
• UPC: 692878899758
• Length: 25 in
• Width: 8.25 in
• Height: 4.12 in
• Weight: 8.2 lbs
• Country of Origin: China (Taiwan)

Fitment

Fits Harley-Davidson Dyna models. Recommended for riders up to 240 lbs total ride load.

Frequently Asked Questions

Can I adjust the rebound and compression on the fly?

Yes — the QS3-R quick-switch allows three-position adjustment (soft, medium, firm) for both rebound and compression without tools.

Are these shocks rebuildable if they wear out?

Yes — FOX IFP-QSR shocks are fully serviceable and rebuildable through authorized FOX dealers.

What's the difference between piggyback and mono-tube versions?

Both use gas-charged internal floating piston design. The piggyback version features an external reservoir for additional fluid volume and heat dissipation.

Do these require any special installation tools?

Standard shock installation tools apply. Hand-adjustable spring preload means no special preload tools are needed for basic adjustments.
