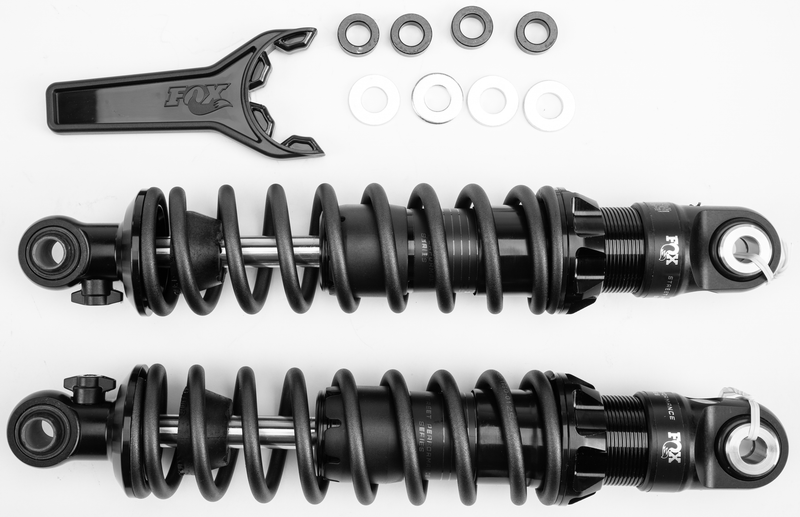

FOX IFP shocks for HD Touring Models - FLT 13" HVY Rebound Adjust — Harley-Davidson (1984-2025)

FOX IFP shocks for Harley-Davidson Touring models, gas-charged mono-tube design with internal floating piston and model-optimized valving. Heavy rebound-adjustable version with hand-adjustable preload spring, available in standard 13" or low 12" lengths to match your riding weight and style.

Features

• IFP-QSR with 3-position adjustable rebound
• Gas-charged mono-tube with internal floating piston
• 1.5" 6061-T6 aluminum Type III hard anodized body
• Advanced high-flow, velocity-sensitive damping
• Hand-adjustable spring preload
• 1/2" chrome shaft with low-friction super finish
• Carbon Black spring in standard, heavy duty, or super heavy duty rates
• Fully serviceable and rebuildable
• Available in 13" standard or 12" low length

Specifications

• Brand: FOX
• Manufacturer Part #: 897-27-212
• UPC: 711745590717
• Length: 25 in
• Width: 8.25 in
• Height: 4.12 in
• Weight: 8.2 lbs

Fitment

Fits Harley-Davidson Touring models with V-Twin engines. Verify model year and engine size against FOX's fitment guide before ordering.

Frequently Asked Questions

What's the difference between standard and heavy duty spring rates?

Standard rate supports riders up to 240 lbs. Heavy duty supports 240-370 lbs. Super heavy duty is for over 370 lbs and Tri-Glide models.

Can I adjust the rebound on these shocks?

Yes — the IFP-QSR version has 3-position adjustable rebound. Preload is hand-adjustable via the spring collar.

Are these shocks rebuildable?

Yes. FOX shocks are fully serviceable and rebuildable, allowing for seal replacement and valving updates down the road.

Should I choose 13" or 12" length?

13" is standard height for most Touring riders. The 12" low option gives a lowered stance — choose based on your preferred ride height and ground clearance.

Are these compatible with my Tri-Glide?

Tri-Glide models use the super heavy duty spring rate. Confirm your specific model year fitment with FOX before ordering.
