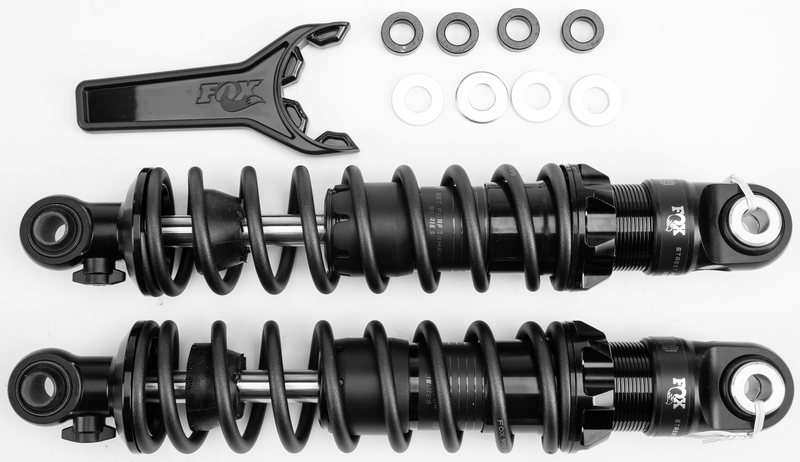

FOX IFP shocks for HD Touring Models - FLT 13" STD Rebound Adjust — Harley-Davidson (1984-2025)

FOX IFP shocks for Harley-Davidson Touring models, gas-charged monotube design with internal floating piston and velocity-sensitive damping. Available in standard 13" length with hand-adjustable spring preload and three rider weight categories to match your setup.

Features

• Gas-charged monotube with internal floating piston
• Velocity-sensitive deflective disk damping
• 1.5" 6061-T6 aluminum hard-anodized body
• 1/2" hard chrome shaft with low-friction super finish
• Hand-adjustable spring preload
• Fully serviceable and rebuildable
• Available in standard or heavy-duty spring rates

Specifications

• Brand: FOX
• Manufacturer Part #: 897-27-211
• UPC: 711745590700
• Length: 25 in (13" stroke)
• Width: 8.25 in
• Height: 4.12 in
• Weight per shock: 8.2 lbs
• Body Material: 6061-T6 Aluminum, Type III hard anodized

Fitment

Fits Harley-Davidson Touring models with V-twin engines. Standard 13" length shock.

Frequently Asked Questions

What spring rate should I choose?

Standard rate for riders up to 240 lbs, heavy-duty for 240-370 lbs, super heavy-duty for 370+ lbs and Tri-Glide models.

Can I adjust the rebound on these shocks?

This standard version does not have rebound adjustment. FOX also offers an IFP-QSR version with 3-position adjustable rebound if you need that feature.

Are these shocks rebuildable?

Yes — FOX IFP shocks are fully serviceable and rebuildable, so they can be maintained and restored to like-new condition.

Do these shocks come with preload adjustment?

Yes — hand-adjustable spring preload allows you to dial in the ride height and firmness to suit your weight and load.

What makes the internal floating piston design better?

The IFP separates the gas charge from the oil, maintaining consistent pressure and damping performance over the full stroke without fade.
