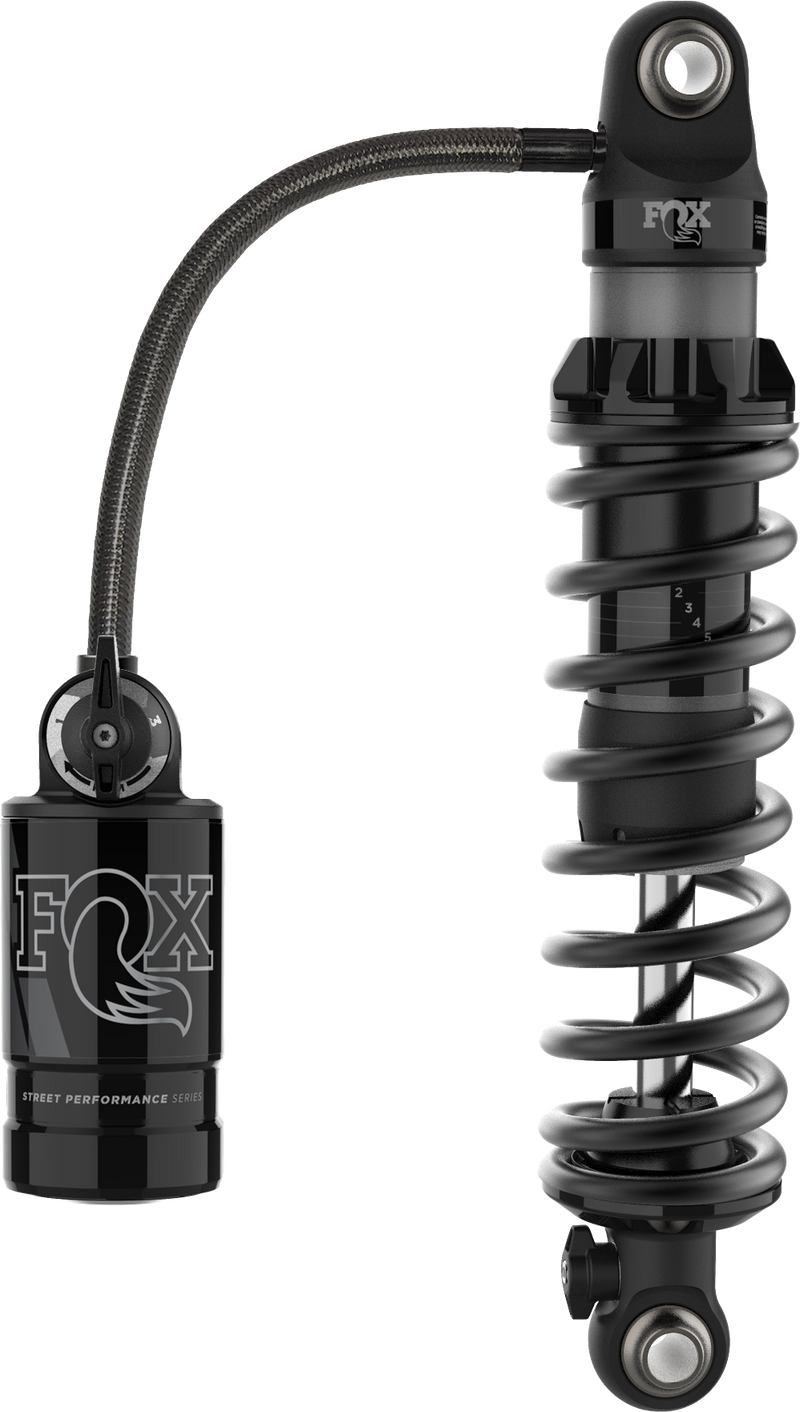

FOX QS3-QSR Shock - 14" Shock FLT REM Resi Fully ADJ HVY SPR — Harley-Davidson (1993-2025)

FOX QS3-QSR fully adjustable rear shock for V-twin motorcycles, featuring 14-inch travel with remote reservoir and three-position compression and rebound damping controls. Gas-charged mono-tube design with speed-sensitive damping delivers responsive, tunable suspension for cruisers and touring bikes.

Features

• QS3 three-position quick-switch compression adjust
• QS3 three-position quick-switch rebound adjust
• Aluminum remote reservoir with hard chrome shaft
• Gas-charged mono-tube with internal floating piston
• 1.5-inch 6061-T6 aluminum body, hard anodized
• Advanced speed-sensitive deflective damping
• Fully rebuildable and re-valvable
• Model-specific optimized ride tune
• Fender mounting hardware and preload wrench included

Specifications

• Brand: FOX
• Manufacturer Part #: 897-27-314
• UPC: 692878899772
• Travel: 14 inches
• Length: 28.81 in
• Width: 12.25 in
• Height: 4.87 in
• Weight: 15 lbs
• Shock Body Material: 1.5-inch 6061-T6 aluminum, Type III hard anodized
• Shaft: 5/8-inch hard chrome, super-finished
• Country of Origin: China (Taiwan)

Fitment

Fits V-twin motorcycles including Harley-Davidson and Indian Motorcycle models. Verify fitment with model and year before ordering.

Frequently Asked Questions

What's included in the box?

The FOX shock, remote reservoir, fender mounting hardware, and plastic preload adjustment wrench.

Can I adjust this shock myself?

Yes — the QS3 compression and rebound dials are easily accessible. The shock includes preload adjustment markings and a plastic wrench for quick tuning.

Is this shock rebuildable?

Yes — the mono-tube design is fully rebuildable and re-valvable, meaning it can be serviced and tuned by a suspension specialist.

How does the remote reservoir work?

The aluminum reservoir stores pressurized nitrogen gas and connects via hose to the main shock body, allowing better heat dissipation and ride consistency on long rides.

What's the advantage of speed-sensitive damping?

The deflective speed-sensitive design automatically responds to bumps and road inputs — firmer on fast inputs, more compliant on slow movements for a balanced ride.
