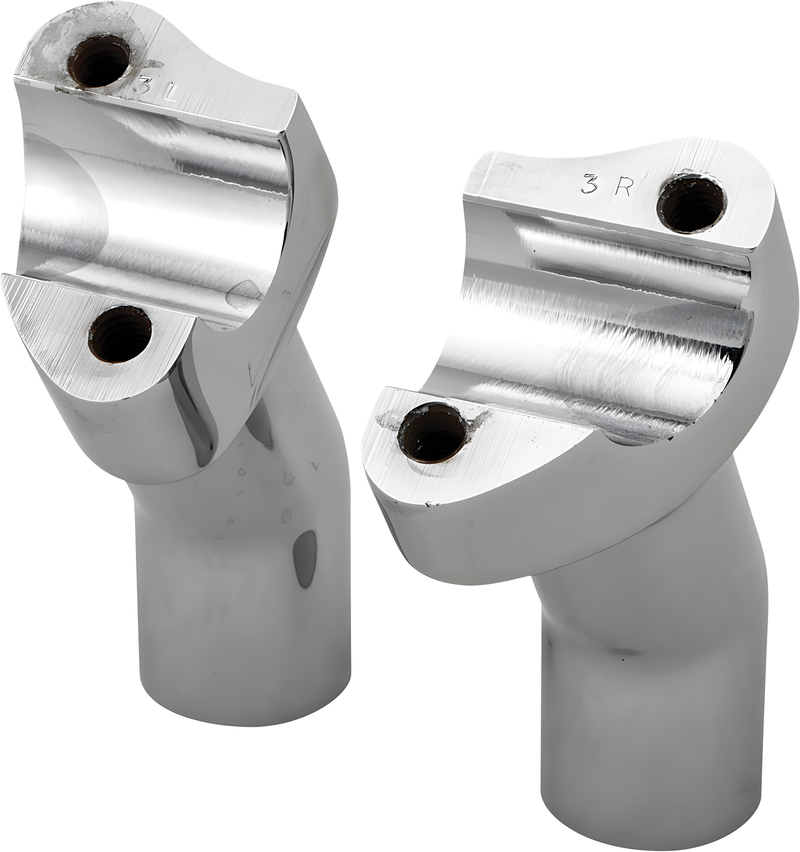

Harddrive Forged Handlebar Riser - H-BAR Risers 3.5" Pullback Chrome

Harddrive forged handlebar riser for 1-inch bars, offering 3.5 inches of pullback with a 1.25-inch diameter stem. Chrome finish and 1/2-13 threading make it a direct bolt-on for most V-twin cruisers.

Features

• Fits 1-inch handlebar tubes
• 1.25-inch diameter riser stem
• 1/2-13 thread mounting
• 3.5-inch pullback geometry
• Chrome finish
• Forged construction

Specifications

• Brand: Harddrive
• Manufacturer Part #: H57-6075CF-3.5
• UPC: 191361139505
• Finish: Chrome
• Handlebar Tube Size: 1 inch
• Stem Diameter: 1.25 inch
• Pullback: 3.5 inches
• Thread Size: 1/2-13
• Length: 5.3 in
• Width: 3.4 in
• Height: 2.2 in
• Weight: 1.1204 lbs
• Country of Origin: China (Taiwan)

Fitment

Fits V-twin motorcycles with 1-inch handlebar tubes and 1/2-13 threaded risers.

Frequently Asked Questions

What size handlebar does this fit?

1-inch diameter bars. If your bike has 1.25-inch or 1.5-inch bars, you'll need a different riser.

How much pullback does this provide?

3.5 inches of pullback — pulls the bars up and back toward the rider for a more relaxed riding position.

Do I need to remove my bars to install this?

Yes. You'll need to unbolt your existing risers, remove the bars, slide them into these new risers, and re-bolt everything down.

Will this fit my Sportster?

Check your stock riser specs — Sportsters use 1-inch bars but verify your risers have 1/2-13 threads before ordering.
