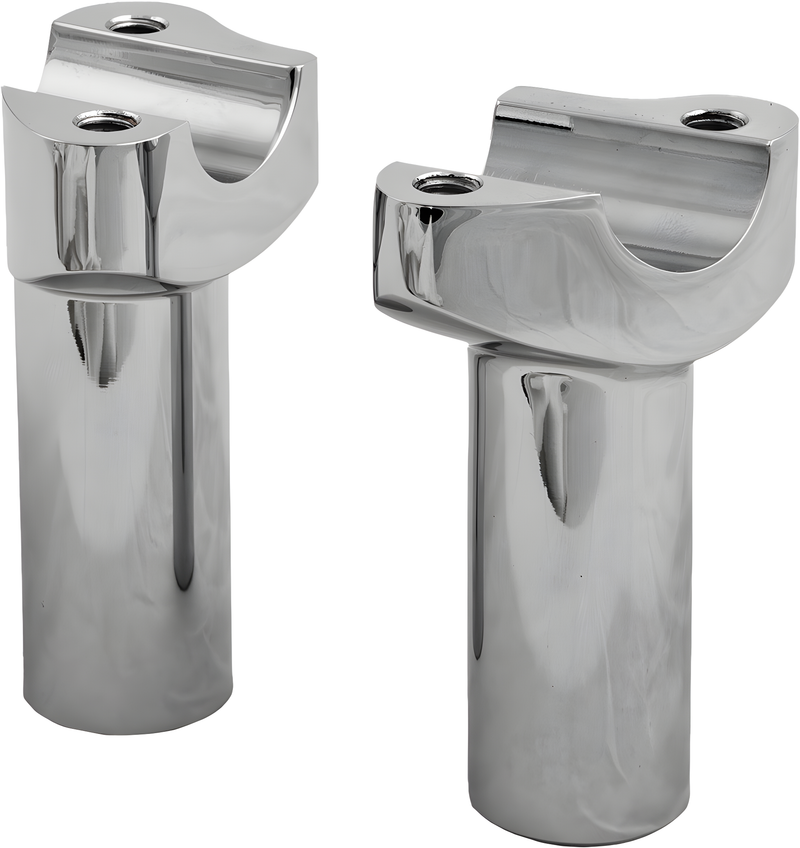

Harddrive Forged Handlebar Riser - H-BAR Risers 3.5" Straight Chrome

Harddrive forged handlebar riser in chrome for V-twin motorcycles with 1-inch handlebars. Raises bars 3.5 inches with a straight stem design and fits 1.25-inch diameter riser bores using 1/2-13 thread bolts.

Features

• Forged steel construction
• 3.5-inch rise, straight stem
• Fits 1-inch handlebar diameter
• 1.25-inch stem diameter riser bore
• 1/2-13 thread mounting bolts
• Chrome finish

Specifications

• Brand: Harddrive
• Manufacturer Part #: 04-517
• UPC: 191361143953
• Bar Diameter: 1 inch
• Stem Diameter: 1.25 inches
• Thread Size: 1/2-13
• Height: 2.75 inches
• Length: 11.61 inches
• Width: 4.76 inches
• Weight: 0.8818 lbs
• Country of Origin: China (Taiwan)

Fitment

Fits V-twin motorcycles equipped with 1-inch handlebar diameter and 1.25-inch riser stem bores.

Frequently Asked Questions

Will these fit my handlebar diameter?

These risers are designed for 1-inch handlebar diameter. Verify your bar size before ordering.

What bolt size do I need?

1/2-13 thread bolts mount these risers. Use stainless steel bolts and washers for corrosion resistance.

How much higher will my bars sit?

The riser body adds 3.5 inches of height, moving bars back and up from stock position.

Do I need longer throttle and brake cables?

Most riders need cable extensions or replacements when raising bars 3.5 inches. Check cable routing before installation.
