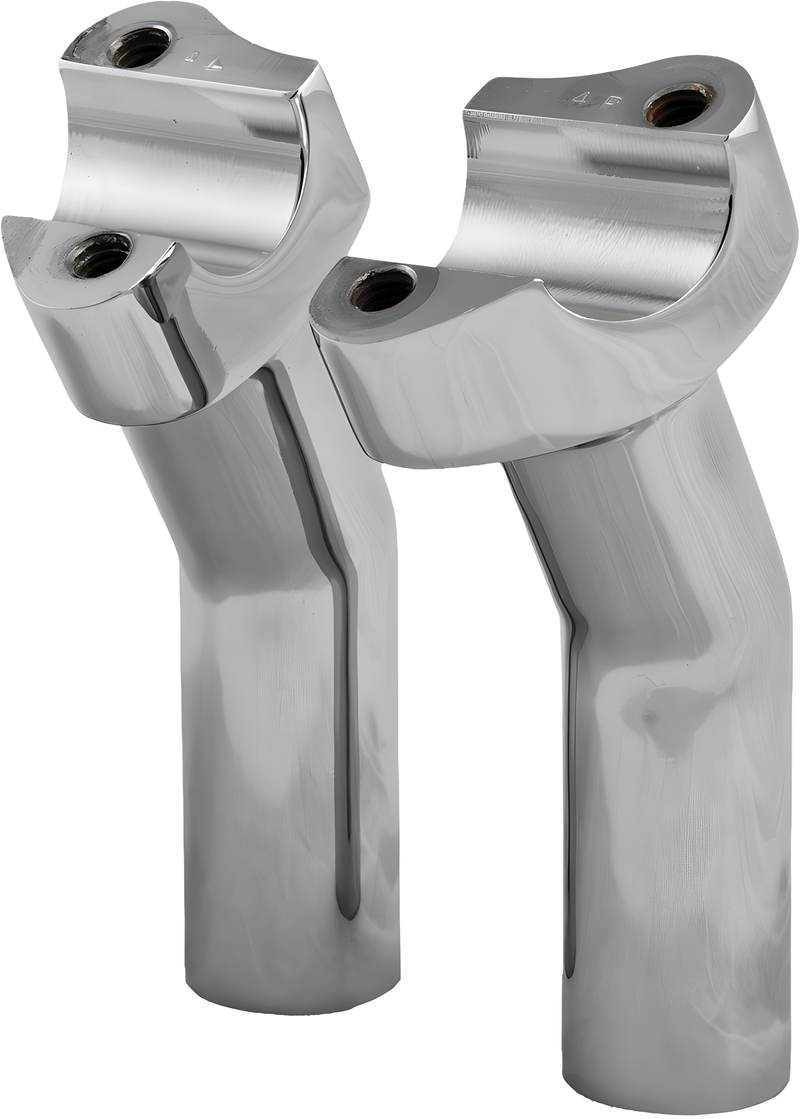

Harddrive Forged Handlebar Riser - H-BAR Risers 4.5" Pullback Chrome

Harddrive forged handlebar riser with 4.5" pullback for 1" diameter bars, built for V-twin cruisers and touring bikes. Chrome-plated forged construction raises the bars for more upright ergonomics without requiring handlebar relocation or extensive wiring changes.

Features

• Forged steel construction
• 4.5" pullback geometry
• Fits 1" handlebar diameter
• 1.25" diameter riser stem with 1/2-13" mount threads
• Chrome finish

Specifications

• Brand: Harddrive
• Manufacturer Part #: H57-6075CF-4.5
• UPC: 191361139512
• Handlebar Diameter: 1 inch
• Riser Stem Diameter: 1.25 inch
• Mount Thread: 1/2-13
• Pullback: 4.5 inches
• Length: 2.6 in
• Width: 5.4 in
• Height: 2.4 in
• Weight: 1.06 lbs
• Finish: Chrome
• Country of Origin: China (Taiwan)

Fitment

Fits V-twin motorcycles with 1" diameter handlebar tubes and standard 1/2-13" top-clamp mounting holes.

Frequently Asked Questions

Do these fit my Harley or Indian motorcycle?

These fit most V-twin cruisers and touring bikes with 1" bars and standard top clamps. Verify your bar diameter and clamp bolt spec before ordering.

How much higher do these raise the bars?

The 4.5" pullback moves bars rearward and up compared to stock — exact rise depends on your original riser height and mounting angle.

Will I need new cables or wiring harnesses?

Most riders can reuse existing brake and clutch cables with risers this size, but verify cable length before final assembly.

What's included?

The forged riser pair only — handlebar clamps, top-clamp bolts, and brake/clutch cables are sold separately.
