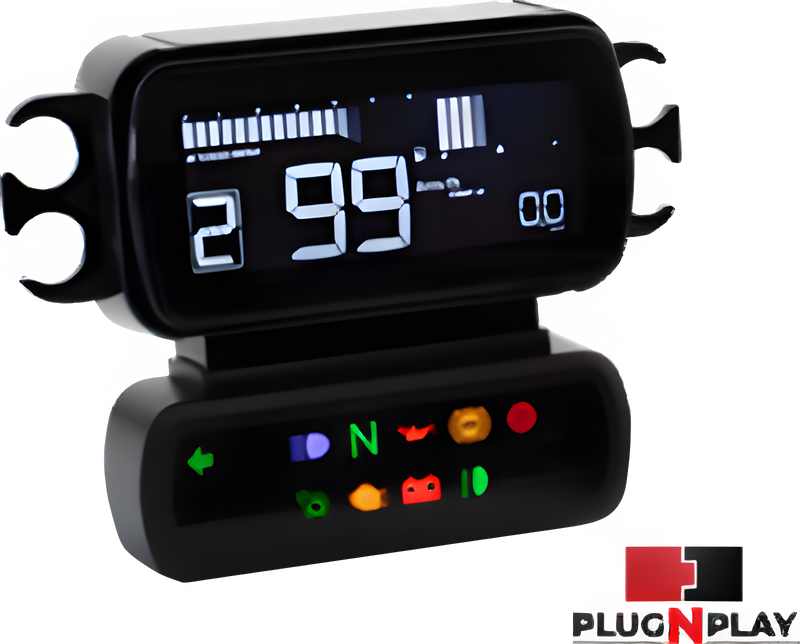

Koso LCD D2 HUD Gauge - `2004-2013 FXD XL Fxst — Harley-Davidson Sportster 1200 Custom, Softail Heritage Classic, Softail Fat Boy (2004-2013)

Koso LCD D2 HUD gauge displays tachometer, speedometer, engine temperature, battery voltage, and tire pressure in an 8-color LCD screen designed for 2004-2013 FXD, XL, and FXST models. 100% plug-and-play installation with programmable shift light and gear indicator.

Features

• 8-color LCD display with tach and speedo
• Programmable shift light
• Gear indicator
• Engine temperature, battery voltage, and tire pressure monitoring
• 100% plug-and-play installation
• Streetbob styling

Specifications

• Brand: Koso
• Manufacturer Part #: BA080010
• Length: 5.25 in
• Width: 5.25 in
• Height: 3 in
• Weight: 1 lbs
• Country of Origin: China (Taiwan)

Fitment

Fits 2004-2013 Harley-Davidson FXD, XL (Sportster), and FXST models. Available in Can-Bus and Non Can-Bus configurations.

Frequently Asked Questions

Will this work on my CVO model?

No — this gauge is not compatible with CVO models.

Will the gauge display my fuel level?

No — on models with in-tank fuel gauges, the HUD will not display fuel level readings.

Do I need any special wiring or adapters?

No — this is 100% plug-and-play. Check whether your bike is Can-Bus or Non Can-Bus to order the correct version.

Can I adjust the shift light?

Yes — the shift light is programmable to your preferred RPM.

What does the gauge display?

Tachometer, speedometer, engine temperature, battery voltage, tire pressure, gear indicator, and warning lights.
