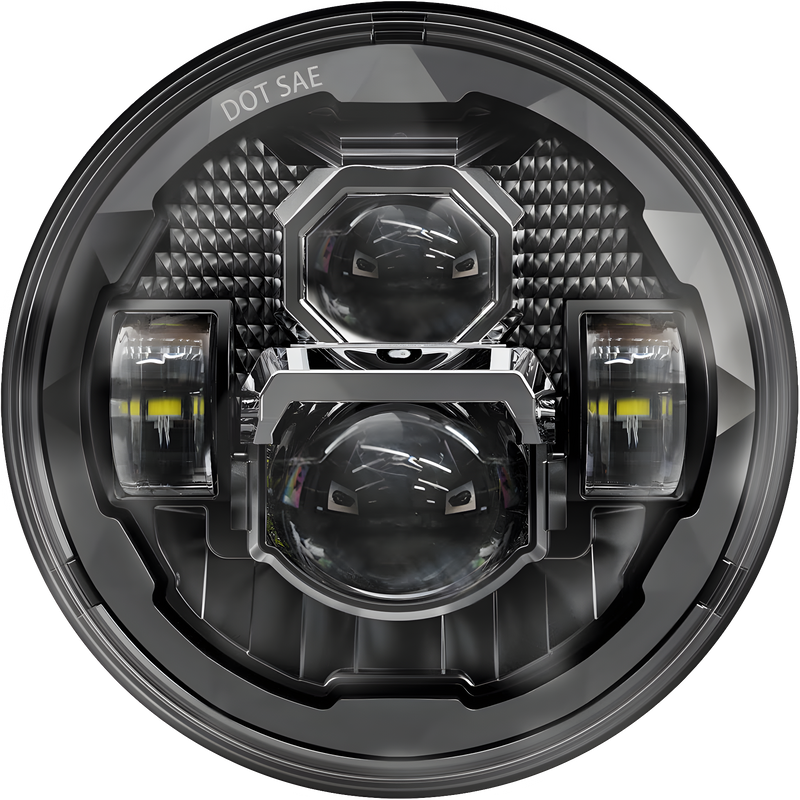

Pathfinder Rugged ultra view headlight - Black

Pathfinder Rugged Ultra View LED headlight in black delivers 6000K super-bright white light with 2300 lumens on low beam and 3600 lumens on high beam. Direct H4 plug-and-play replacement for most 7-inch factory headlight housings that increases visibility and draws only one-third the power of stock incandescent bulbs.

Features

• 6000K super-bright white LED — increases vision by 200%
• 2300 lm low beam / 3600 lm high beam output
• Shatterproof polycarbonate lens — shock and vibration resistant
• LED draws 1/3 the power of stock incandescent lights
• H4 plug-and-play connector — no rewiring required
• DOT compliant

Specifications

• Brand: Pathfinder
• Manufacturer Part #: UV7B
• Light Output (Low): 2300 lumens
• Light Output (High): 3600 lumens
• Color Temperature: 6000K
• Connector Type: H4
• Length: 8 in
• Width: 8 in
• Height: 5.5 in
• Weight: 2.5 lbs
• Country of Origin: China (Mainland)

Fitment

Fits most 7-inch factory headlight housings. Some bikes may require an optional mounting adapter ring (WPS 226-0030 or 226-0033).

Frequently Asked Questions

Will this fit my bike's factory headlight housing?

This headlight is designed for most 7-inch factory housings. Some bikes may need an adapter ring — verify your housing diameter before ordering.

Is installation complicated?

No — it's a plug-and-play H4 connector. Simply disconnect the factory bulb and plug in the LED headlight. No rewiring needed.

Does it require a mounting adapter?

Most 7-inch housings fit directly. If your headlight has a slightly different diameter, Pathfinder offers adapter rings (WPS 226-0030 or 226-0033) sold separately.

Is this DOT-compliant?

Yes — this headlight meets DOT safety standards for street use.

How much brighter is this than stock?

This LED produces 2300 lumens on low beam versus typical stock incandescent at 1200 lumens — roughly double the brightness. High beam reaches 3600 lumens.
