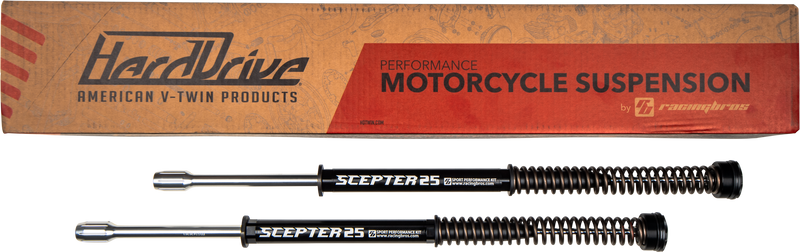

Scepter 25 Cartridge Kit - +2" Cartridge KIT 49mm STD Weight FLH/FLT 2014-2024 — Harley-Davidson (2014-2026)

Scepter 25 cartridge suspension kit for Harley FLH/FLT baggers, featuring a 25mm CRC 7075-T6 damping piston, nitrogen-charged IFP design, and factory-tuned settings that require no post-install adjustment. The +2" cartridges deliver excellent ride quality with strong feedback and comfort for touring models 2014-2024.

Features

• 25mm CRC 7075-T6 damping piston for stable damping
• Cr-Si steel springs with superior fatigue resistance
• Preload adjustable 15mm on both sides
• 24-click compression adjuster
• 24-click rebound adjuster
• Nitrogen-charged oil/gas separation system
• Multiple spring rate options available
• Requires 2" longer fork tubes

Specifications

• Brand: Harddrive (Racing Bros)
• Manufacturer Part #: R0900118-1
• UPC: 191361512117
• Cartridge Size: +2" (49mm)
• Weight Class: STD Weight
• Length: 35.4 in
• Width: 5.9 in
• Height: 3.9 in
• Weight: 6.7 lbs
• Country of Origin: China (Taiwan)

Fitment

Fits Harley-Davidson FLH and FLT touring baggers, 2014-2024 model years. No post-installation adjuster access once installed.

Frequently Asked Questions

Do I need to adjust these cartridges after installation?

No — these are factory-tuned and ready to ride out of the box. Once installed, adjusters are not accessible on baggers.

Will these fit my Dyna or FXR?

No — this kit is specifically for FLH/FLT baggers. Dyna and FXR models use different cartridge kits.

What fork tubes do I need?

You must use 2" longer fork tubes to accommodate the +2" cartridge length. Stock tubes will not work.

Are multiple spring rates available?

Yes — Racing Bros offers multiple spring rate options for different rider weights and preferences.

Can I adjust preload, compression, or rebound?

Yes, these cartridges are fully adjustable (preload ±15mm, compression 24 clicks, rebound 24 clicks), but once installed on a bagger, the adjusters are not accessible.
