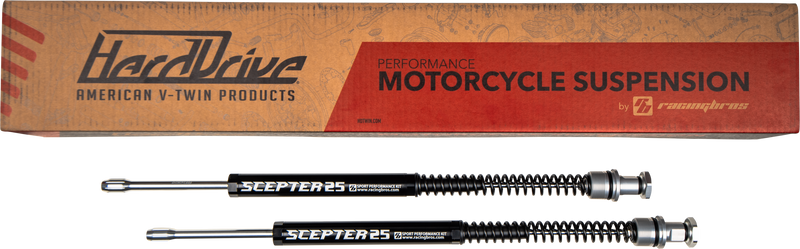

Scepter 25 Cartridge Kit - Fork KIT 41mm Flhx 2006-2013 — Harley-Davidson Street Glide, CVO Street Glide, Street Glide Trike (2006-2013)

Scepter 25 cartridge kit for 41mm fork tubes on Harley baggers 2006-2013, featuring a 25mm CNC 7075-T6 damping piston and nitrogen-charged oil/gas separation system. Pre-tuned out of the box for a balanced ride with excellent feedback and comfort — no adjustment needed after installation.

Features

• 25mm CNC 7075-T6 damping piston with IFP design
• Cr-Si steel springs for consistent rate and fatigue resistance
• 24-click rebound adjuster
• 24-click compression adjuster
• 15mm preload adjustability on both sides
• Nitrogen-charged oil/gas separation system
• Multiple spring rate options available

Specifications

• Brand: Harddrive
• Manufacturer Part #: R0900104-1
• UPC: 191361170737
• Fork Tube Size: 41mm
• Length: 35 in
• Width: 5 in
• Height: 4.25 in
• Weight: 5.2 lbs
• Country of Origin: China (Taiwan)

Fitment

Fits Harley-Davidson baggers 2006-2013, including Street Glide and similar models with 41mm fork tubes. Not designed for Dyna or FXR models.

Frequently Asked Questions

Do these require adjustment after installation?

No — the Scepter 25 kit is pre-tuned out of the box. They're ready to ride immediately upon install.

What's the difference between these and Scepter kits for Dyna or FXR?

Bagger versions lack external adjusters because there's no access to them once installed on the fairing. Dyna and FXR versions remain fully adjustable.

Can I adjust rebound and compression?

Yes — both feature 24-click adjusters for rebound and compression, plus 15mm preload adjustability on each side.

Do I need longer fork tubes for installation?

Standard 41mm tubes work with these cartridges. If ordering +2" length cartridges, you will need 2" longer fork tubes.

What's included in the kit?

The pair of cartridge assemblies with springs and all internal components — ready to replace your stock forks.
