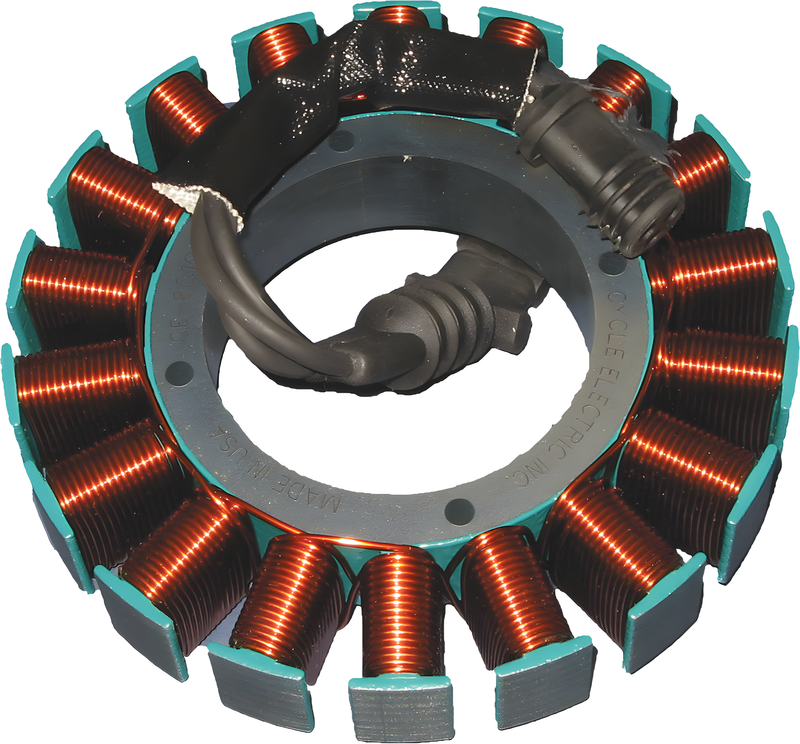

Cycle Electric Stator - Softail 2008-2017 — Harley-Davidson Softail Heritage Classic, Softail Fat Boy, Softail Deluxe (2008-2017)

Cycle Electric stator for Harley-Davidson Softail 2008-2017, engineered with high-temperature insulation and optimized low-speed output to prevent stator burn-out and battery drain at idle. Direct OEM-quality replacement for stock electrical charging.

Features

• 600°F insulation rating eliminates stator burn-out risk
• Improved low-speed output reduces battery discharge at idle
• Lower operating temperature extends service life
• Swelling-resistant plug connectors
• Direct replacement for OEM stator

Specifications

• Brand: Cycle Electric
• Manufacturer Part #: CE-8010-08
• Length: 6.4 in
• Width: 6.9 in
• Height: 2.4 in
• Weight: 3.78 lbs

Fitment

Fits Harley-Davidson Softail models 2008 through 2017.

Frequently Asked Questions

Will this fit my Softail outside the 2008-2017 range?

This part is specific to 2008-2017 Softail models. Earlier and later Softails use different stator assemblies — verify the model year before ordering.

What's the main difference from the stock stator?

This stator has 600°F insulation to prevent burn-out, better low-speed output to keep the battery charged at idle, and cooler-running plugs that won't swell or separate.

Will this solve my battery drain issues at idle?

Better low-speed output is designed to reduce battery discharge when idling. If you have a parasitic drain or bad battery, those issues should be addressed separately.

Is installation difficult?

Stator replacement is a moderate DIY job requiring basic mechanical skill and tools to access the crankcase cover. A shop can install it in about an hour.
