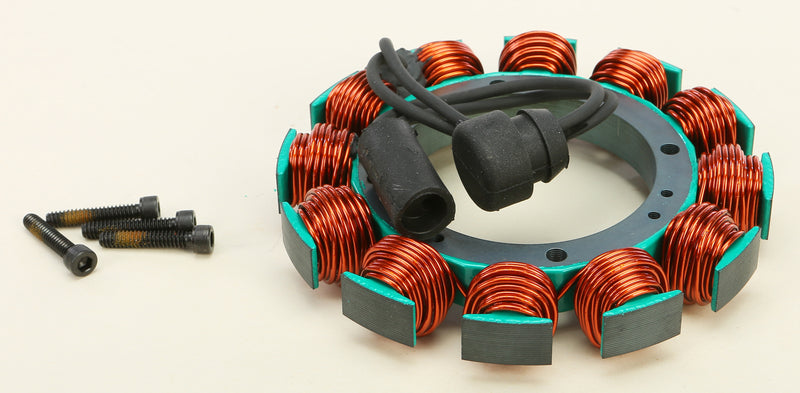

Cycle Electric Stator - XL 1984-1990 — Harley-Davidson Sportster 883, Sportster 883 Deluxe, Sportster 883 Hugger (1984-1990)

Cycle Electric stator for 1984-1990 Harley-Davidson Sportster XL models, engineered to withstand extreme heat and deliver consistent low-speed charging. Built with temperature-resistant insulation and improved connectors to prevent premature failure and battery drain at idle.

Features

• 600°F heat-resistant insulation to prevent stator burnout
• Better low-speed output reduces battery discharge at idle
• Lower operating temperature extends service life
• Improved connectors that won't swell or separate

Specifications

• Brand: Cycle Electric
• Manufacturer Part #: CE-8590
• Length: 6.8 in
• Width: 6.3 in
• Height: 2.4 in
• Weight: 2.26 lbs

Fitment

Fits 1984-1990 Harley-Davidson Sportster (XL) models.

Frequently Asked Questions

Will this fit my Sportster outside the 1984-1990 range?

No — this stator is engineered specifically for 1984-1990 XL Sportsters. Earlier and later models use different stator designs.

What's the main benefit of a Cycle Electric stator over OEM?

Better low-speed charging output to prevent battery drain at idle, plus heat-resistant insulation rated to 600°F for longer life.

Is installation difficult?

Stator replacement requires removing the primary cover and unbolting the old stator. Most riders need 1-2 hours or professional shop assistance.

Will this solve my battery drain at idle?

Yes — the improved low-speed output is designed to keep your battery charged even at extended idle, reducing the need for a tender.
