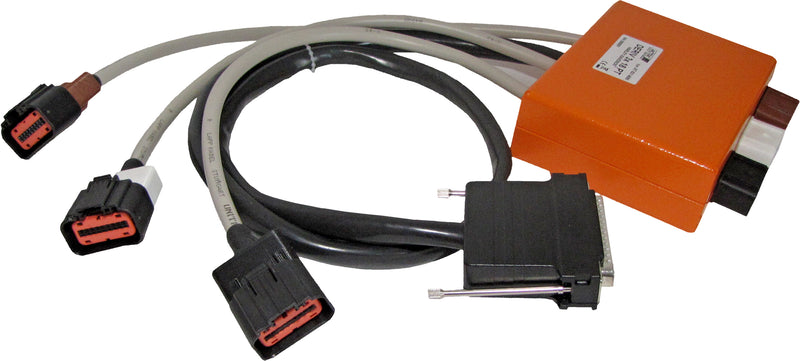

Diag4 Bike Parallel Diagnostic System Adapter 3x18 PIN - Harley Softail Milwaukee-Eight
About Diag4 Bike
Diag4 Bike parts and accessories are stocked at Vtwinbikers for Harley-Davidson and Indian Motorcycle applications. Every Diag4 Bike item we list is new and sourced through authorized distribution. If you are not certain a part matches your year and model, use Shop by Bike or email our team before you order and we will confirm fitment first.
The Diag4 Bike parallel diagnostic adapter is an essential tool for advanced EFI troubleshooting on your V-twin. Featuring a 3x18 PIN connector and a convenient breakout box, this system allows you to measure fuel injection input and output signals in real time. It's designed for use on running engines, providing live data without interrupting normal operation.
Why riders pick this
- Live parallel diagnostics for EFI signals
- 3x18 PIN connector with breakout box
- Monitor input and output signals on running engines
- Non-invasive installation
- Clearly labeled monitoring points
When you're chasing down an elusive EFI issue or fine-tuning your V-twin's engine management, real-time data is invaluable. The Diag4 Bike parallel diagnostic adapter provides exactly that, giving you the ability to monitor every input and output signal from your electronic fuel injection module while the engine is running. This non-invasive approach means you get accurate diagnostics under actual operating conditions, making it easier to pinpoint performance bottlenecks or diagnose intermittent faults.
Precision EFI Monitoring
- Enables parallel diagnostics for live EFI signal monitoring
- Includes a wiring harness adapter with a breakout box
- Clearly labeled monitoring points for all connector pins
- Measures input and output signals on running engines
- Non-invasive installation between EFI module and harness
Advanced Troubleshooting for Performance V-Twins
This diagnostic adapter is a game-changer for serious tuners and mechanics working on modern Harley-Davidson and Indian Motorcycle V-twins, especially those with Milwaukee-Eight engines. By providing direct access to EFI signals without disrupting the system, you can perform comprehensive analysis, verify sensor readings, and confirm actuator responses. It's a critical tool for anyone looking to go beyond basic fault codes and truly understand their bike's engine performance.
Specifications
- Brand: Diag4 Bike
- Manufacturer Part #: AT 531 4080
- Connector Type: 3x18 PIN
- Length: 11.5 in
- Width: 7.25 in
- Height: 2.25 in
- Weight: 2.2 lbs
- Country of Origin: Czech Republic
Common questions
Can this diagnostic adapter be used while the engine is running?
Yes, this system is specifically designed for parallel diagnostics, allowing you to monitor EFI signals on running engines without interrupting normal engine operation.
What types of signals can I monitor with this adapter?
You can monitor both input and output signals from your electronic fuel injection module and related engine management systems, providing comprehensive data for diagnostics.
Is this compatible with all Harley-Davidson and Indian Motorcycle models?
This specific adapter features a 3x18 PIN connector and is designed for certain Harley-Davidson Softail models with Milwaukee-Eight engines. Please confirm the connector type required for your specific year and model before purchasing.
