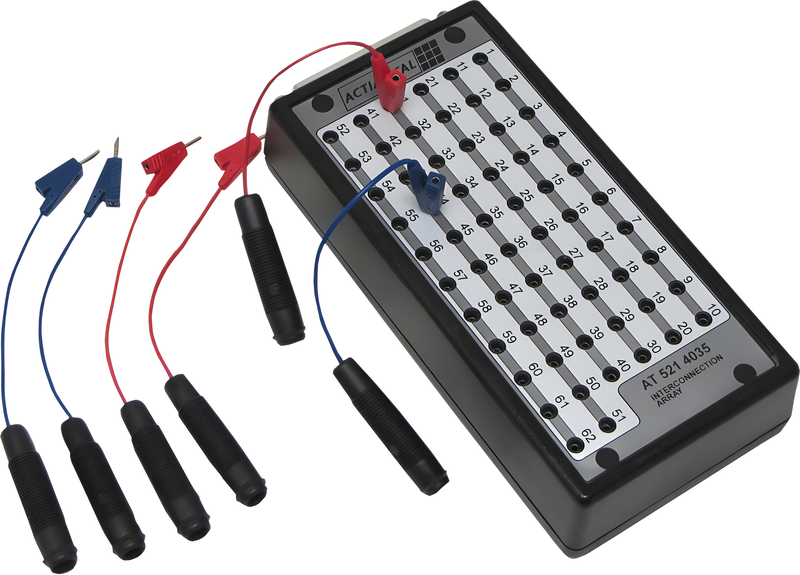

Diag4 Bike Parallel Diagnostic System Breakout Box - 62 PIN Breakout BOX

Diag4 Bike 62-pin parallel diagnostic breakout box for measuring EFI module input and output signals on running motorcycle engines. Inserts between the EFI module and wiring harness without interrupting normal engine operation.

Features

• Inserts between EFI module and motorcycle harness
• Clearly labeled monitoring points for all connector pins
• Allows diagnostics on running engines
• No engine shutdown required for testing

Specifications

• Brand: Diag4 Bike
• Manufacturer Part #: AT 521 3037
• Pin Configuration: 62-pin
• Length: 11.5 in
• Width: 7.25 in
• Height: 2.25 in
• Weight: 2.1175 lbs
• Country of Origin: Czech Republic

Fitment

Designed for EFI module diagnostics on fuel-injected motorcycles. Verify your bike's EFI connector is a 62-pin configuration before ordering.

Frequently Asked Questions

Can I use this while the engine is running?

Yes — the breakout box allows you to measure input and output signals with the engine running without shutting down the EFI module.

Do I need to disconnect anything permanently to use this?

No. The box inserts between the EFI module and wiring harness, then removes cleanly. Your bike continues to run normally while connected.

Will this work on my fuel-injected Harley or Indian?

If your bike has a 62-pin EFI connector, yes. Confirm your EFI module connector matches this pin count before ordering.

What tools do I need to install it?

Basic hand tools to access the EFI module connector. The breakout box plugs in — no soldering or cutting required.
