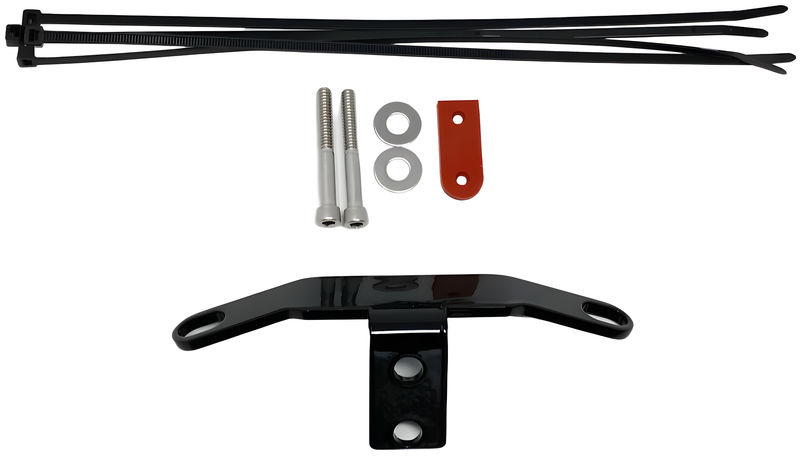

DK Custom Products Coil Relocation Kit - `07-UP XL

DK Custom Products coil relocation kit for 2007-up Sportster XL, built from American cold-rolled steel with black powder coat finish. Moves the ignition coil away from the frame for cleaner custom builds and includes a plug-and-play wire extension for hassle-free installation.

Features

• American cold-rolled steel construction
• Black powder coat finish
• High-temp rubber coil seat
• Plug-and-play coil wire extension included
• Bolt-on installation with step-by-step instructions

Specifications

• Brand: DK Custom Products
• Manufacturer Part #: DK-CR-RLC07
• Material: American cold-rolled steel with black powder coat
• Length: 8 in
• Width: 5 in
• Height: 1 in
• Weight: 1 lbs

Fitment

Fits 2007 and newer Harley-Davidson Sportster XL models.

Frequently Asked Questions

Is the coil wire extension included?

Yes — a plug-and-play wire extension is included so you can relocate the coil without cutting or splicing factory harness.

Do I need special tools to install this?

No — standard hand tools and basic mechanical knowledge are all you need. Step-by-step instructions are included.

Will this work on a pre-2007 Sportster?

This kit is designed for 2007-up Sportster XL models. Earlier Sportsters require a different bracket design.

Can I powder coat this to match my bike's color?

Yes — the bracket is bare steel under the factory black powder coat, so it can be refinished by a powder coat shop if desired.
