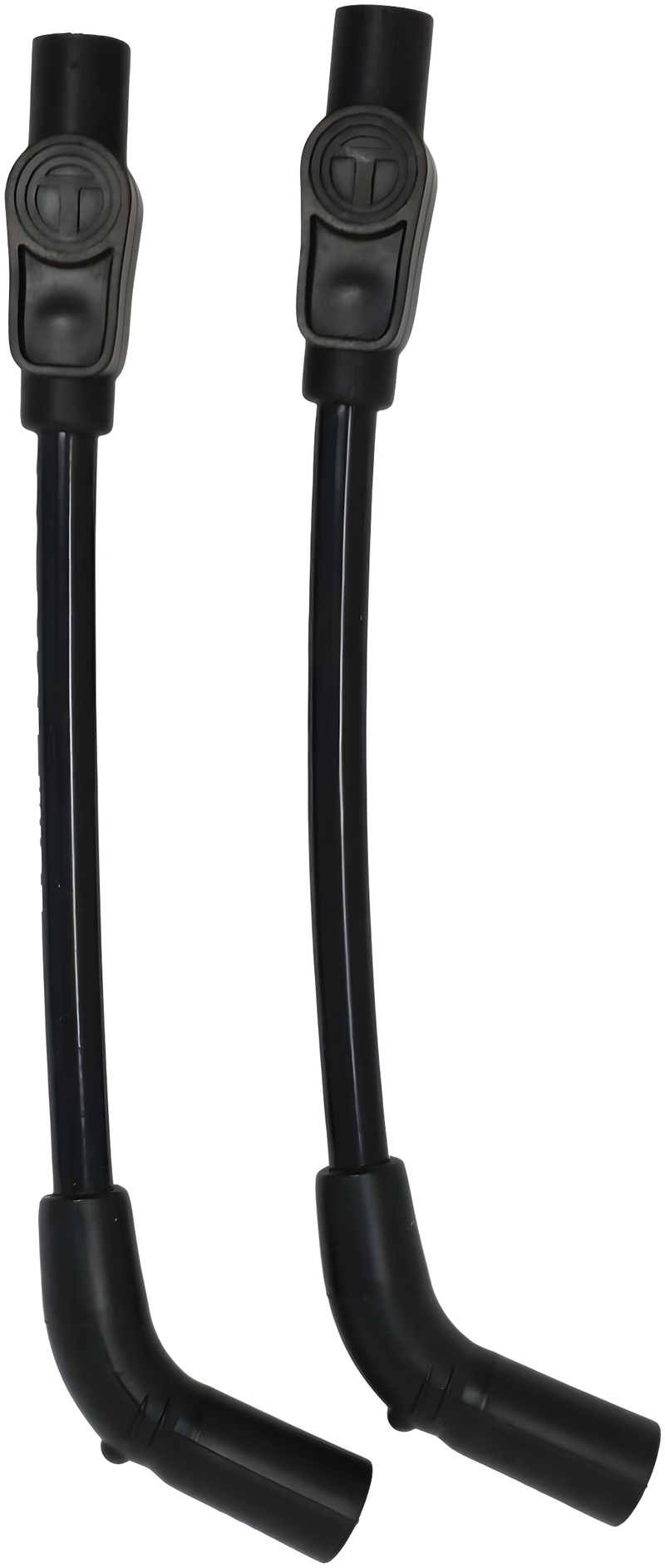

DK Custom Products Coil Relocation Kit Wires - That FIT THE Coil Relocation KIT

DK Custom Products coil relocation kit wires designed for V-twin motorcycles, featuring 409 PRO RACE insulation rated to 600°F and 10.4mm diameter cores with spiral-wound construction. Built specifically to work with DK Custom coil and v-coil relocation kits and fully compatible with Harley-Davidson electronic ignition and Ion Sensing Knock Retard systems.

Features

• 409 PRO RACE insulation with 600°F continuous heat protection
• 10.4mm core diameter with 102,000 volts dielectric strength
• Spiral-wound core with 350 ohms per foot for EMI/RFI suppression
• 100% silicone PRO BOOTS with vibration-proof double-spring terminals
• Compatible with Harley electronic ignition and Ion Sensing Knock Retard systems
• Available in red and black

Specifications

• Brand: DK Custom Products
• Manufacturer Part #: DK-WRS-BLK-10
• Wire Diameter: 10.4mm
• Heat Rating: 600°F continuous
• Dielectric Strength: 102,000 volts
• Core Resistance: 350 ohms per foot
• Boot Style: 100% silicone PRO BOOTS
• Length: 8 in
• Weight: 0.31 lbs

Fitment

Fits V-twin motorcycles equipped with DK Custom coil or v-coil relocation kits. Fully compatible with Harley-Davidson electronic ignition systems.

Frequently Asked Questions

Will these wires work with my Harley's electronic ignition?

Yes — 100% compatible with Harley electronic ignition and the Ion Sensing Knock Retard system.

Do these wires work with any coil relocation kit, or only DK Custom's?

These are designed specifically for DK Custom coil and v-coil relocation kits. Check DK Custom part compatibility before ordering for other kits.

What color options are available?

Available in red and black.

Are these wires pre-cut, or do I need to trim them?

These are pre-cut at 8 inches to fit standard DK Custom relocation kit setups.

Do the spark plug terminals come with vibration protection?

Yes — the 100% silicone PRO BOOTS feature vibration-proof double-spring locking terminals.
