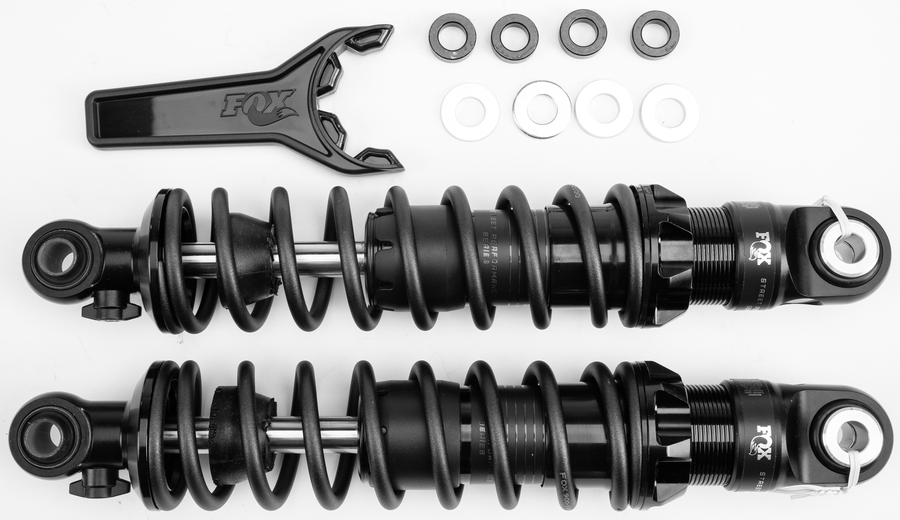

FOX IFP-QSR 14" Standard Rebound Adjustable Shocks - Harley Dyna Models

The FOX IFP-QSR 14" Standard Rebound Adjustable Shocks are a piggyback shock setup offering adjustable damping and a gas-charged mono-tube design with an internal floating piston for consistent performance. Riders looking to refine their ride quality and handling can use the three-position quick-switch rebound and compression control to dial in soft, medium, or firm settings, along with a hand-adjustable spring preload for tuning to their load.

The body is 6061-T6 aluminum with a Type III hard anodized finish, and the 14-inch length, 1.5-inch body, and 8.2 lb weight are listed in the specifications. The design is fully serviceable and rebuildable, and the included carbon black progressive spring is rated for a total ride load of up to 240 lbs. Country of origin is listed as China (Taiwan).

These shocks are a practical option for riders who want a more adjustable suspension setup rather than a standard replacement, with velocity-sensitive damping intended to deliver a more controlled feel over varied road surfaces.

Specifications

• Part Number: 897-27-215
• Length: 25 in
• Width: 8.25 in
• Height: 4.12 in
• Weight: 8.2 lbs
• Body Material: 6061-T6 aluminum
• Finish: Type III hard anodized
• Spring: Carbon black progressive
• Max Total Ride Load: 240 lbs
• Country of Origin: China (Taiwan)
