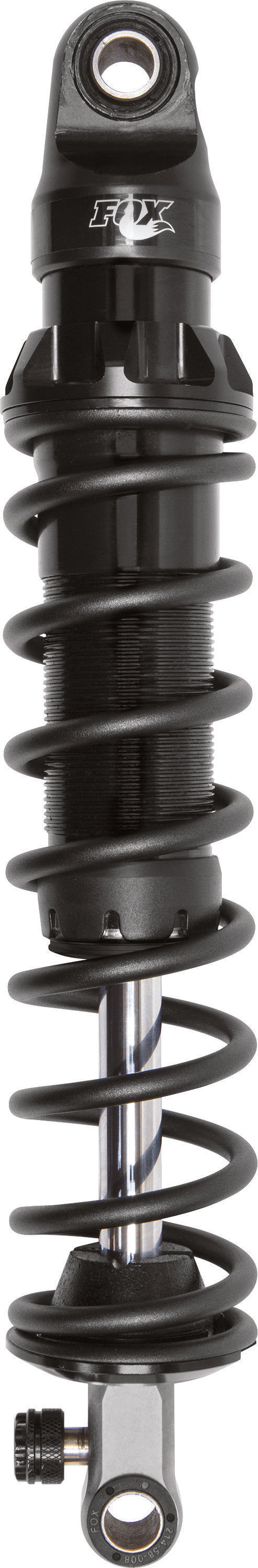

FOX IFP-QSR Shocks for HD FXR Models - 14" STD Rebound Adjust — Harley-Davidson Super Glide, Low Glide, Sport Glide (1982-1994)

FOX IFP-QSR shocks for Harley-Davidson FXR models, gas-charged mono-tube design with velocity-sensitive damping tuned specifically for FXR chassis dynamics. Built with a 1.5" 6061-T6 aluminum body and internal floating piston for responsive suspension performance that handles both cruising and spirited riding.

Features

• Gas-charged mono-tube with internal floating piston
• 1.5" 6061-T6 aluminum type III hard anodized body
• Velocity-sensitive damping with high-flow deflective disk
• 5/8" hard chrome shaft with low friction super finish
• Model-specific optimized ride tune for FXR chassis
• Fully serviceable and rebuildable internals
• Available in 13" and 14" lengths
• Aluminum billet preload adjuster

Specifications

• Brand: FOX
• Manufacturer Part #: 897-27-021
• UPC: 788000423691
• Body Material: 1.5" 6061-T6 Aluminum, Type III hard anodized
• Shaft: 5/8" hard chrome, super-finished
• Design: Gas-charged mono-tube with internal floating piston
• Damping: Velocity-sensitive with high-flow deflective disk
• Spring: Carbon Black
• Length: 25 in (14" shock)
• Width: 9 in
• Height: 4 in
• Weight: 9 lbs

Fitment

Fits Harley-Davidson FXR models 1984-2000. Available in both 13" and 14" lengths to suit different ride heights and chassis setups.

Frequently Asked Questions

What's the difference between the 13" and 14" versions?

The 13" is a shorter stroke for stock ride height; the 14" sits taller for a raised stance. Choose based on your desired ride height and fork geometry.

Are these shocks rebuildable if they wear out?

Yes — FOX IFP-QSR shocks are fully serviceable and rebuildable. Internal components can be replaced rather than discarding the entire shock.

Will this fit my 2001 or newer FXR-style frame?

This part is designed for original FXR models 1984-2000. Frame geometry changed after 2000, so verify fitment if you have a newer bike built on a different chassis.

Can I adjust the rebound damping?

Yes — the 14" STD Rebound Adjust version includes a standard rebound adjuster. Turn it to dial in damping response to match your riding style and load.

What's the preload adjuster made of?

The preload adjuster and spring seat are aluminum billet construction with a laser-etched FOX logo.
