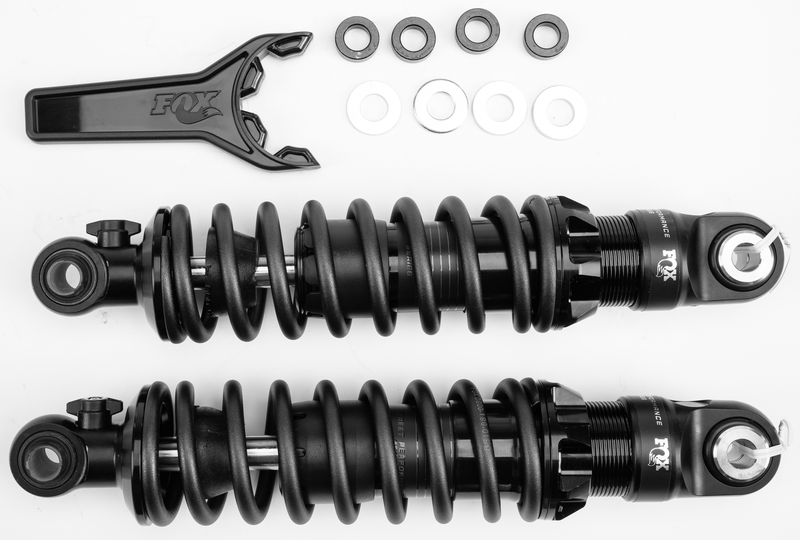

FOX IFP shocks for HD Touring Models - FLT 12" HVY Rebound Adjust — Harley-Davidson (1984-2025)

FOX IFP mono-tube shocks for Harley-Davidson Touring models, engineered with a gas-charged internal floating piston and velocity-sensitive damping to handle the weight and demands of modern bagger riding. Available in 12" low or standard 13" lengths with adjustable spring preload and three spring rate options.

Features

• Gas-charged mono-tube with internal floating piston
• Advanced high-flow, velocity-sensitive damping
• Hand-adjustable spring preload
• 1.5" 6061-T6 aluminum body, hard anodized
• 1/2" hard chrome shaft with low-friction super-finish
• Carbon Black springs in standard, heavy duty, or super heavy duty rates
• Fully serviceable and rebuildable
• IFP-QSR version includes 3-position adjustable rebound

Specifications

• Brand: FOX
• Manufacturer Part #: 897-27-210
• UPC: 711745590694
• Length: 25 in overall
• Body Diameter: 1.5 in
• Body Material: 6061-T6 aluminum, type III hard anodized
• Shaft Material: Hard chrome, 1/2 in diameter
• Weight: 8.2 lbs

Fitment

Fits Harley-Davidson Touring models. Available in 12" low or standard 13" lengths to match OEM ride height.

Frequently Asked Questions

What spring rate should I choose?

Standard rate handles riders up to 240 lbs. Heavy duty suits 240-370 lbs. Super heavy duty is for riders over 370 lbs or Tri-Glide models.

Can I adjust rebound on all FOX IFP models?

Only the IFP-QSR version includes 3-position adjustable rebound. Standard IFP shocks do not have rebound adjustment.

Are these shocks rebuildable if they wear out?

Yes — FOX IFP shocks are fully serviceable and can be rebuilt by FOX or authorized repair centers.

Do I need to choose 12" or 13" length?

12" lowers ride height slightly; 13" maintains stock height. Choose based on your desired ride stance and comfort.

What damping technology is used?

Advanced high-flow, deflective disk, velocity-sensitive damping adjusts to changing road conditions for consistent control.
