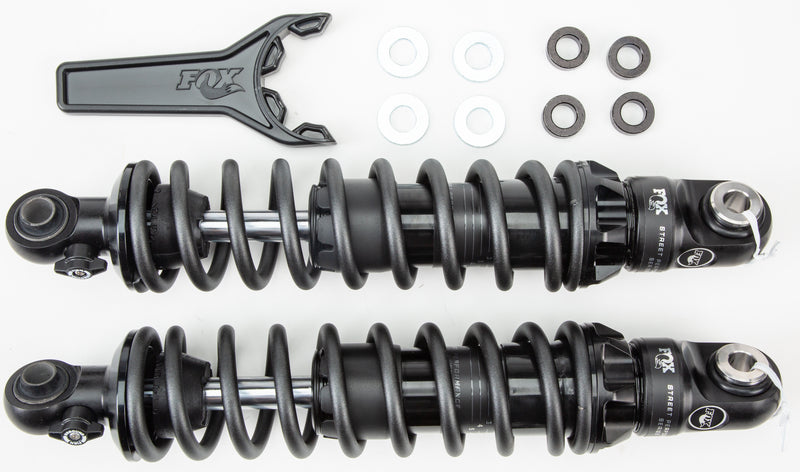

FOX IFP shocks for HD Touring Models - FLT 13" Super HVY Rebound ADJ — Harley-Davidson (1984-2025)

FOX IFP gas-charged mono-tube shocks for Harley-Davidson Touring models, featuring a 3-position adjustable rebound damper and model-specific tune. Built on a 1.5" 6061-T6 aluminum body with an internal floating piston and high-flow velocity-sensitive damping for consistent ride control.

Features

• IFP-QSR with 3-position adjustable rebound
• Gas-charged mono-tube with internal floating piston
• 1.5" 6061-T6 aluminum body, type III hard anodized
• Advanced high-flow, deflective disk damping
• Hand-adjustable spring preload
• 1/2" hard chrome shaft, super-finished low friction
• Carbon Black spring, standard or heavy duty rates
• Fully serviceable and rebuildable
• Available 13" standard or 12" lowered length

Specifications

• Brand: FOX
• Manufacturer Part #: 897-27-214
• UPC: 711745590755
• Length: 25 in
• Width: 8.25 in
• Height: 4.12 in
• Weight: 8.2 lbs

Fitment

Fits Harley-Davidson Touring models with V-Twin engines. Spring rate selection: Standard for riders up to 240 lbs, Heavy Duty for 240–370 lbs, or Super Heavy Duty for up to 370 lbs and Tri-Glide models.

Frequently Asked Questions

What spring rate do I need?

Standard fits riders up to 240 lbs. Heavy Duty handles 240–370 lbs. Super Heavy Duty is rated to 370 lbs and recommended for Tri-Glide models.

Can I adjust the rebound on these shocks?

Yes — the IFP-QSR version features a 3-position adjustable rebound damper for tuning ride feel.

Are these shocks rebuildable if they wear out?

Yes — FOX IFP shocks are fully serviceable and rebuildable by FOX or a qualified suspension shop.

Do these come in different lengths?

Yes — available in standard 13" or lowered 12" lengths to suit your bike setup.

What happens if I exceed the weight rating?

Exceeding the rated spring weight can cause poor damping, bottoming, and reduced suspension performance. Select the correct spring rate for your weight and passenger load.
