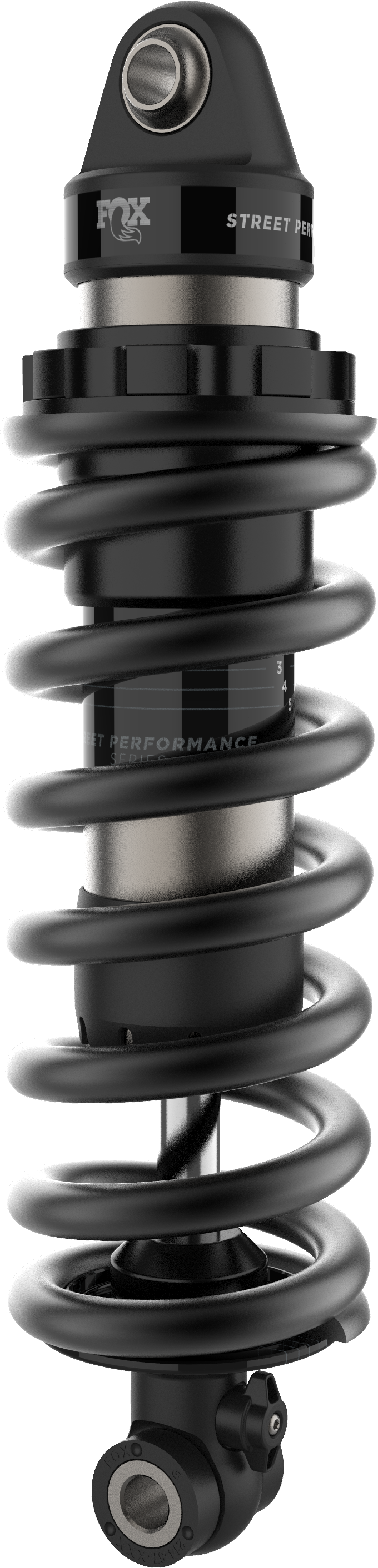

FOX IFP shocks for HD Touring Models - M8 Softail 13.5" STD REB Adjus — Harley-Davidson (2018-2024)
FOX IFP shocks for Harley-Davidson Touring models, engineered with gas-charged mono-tube construction and internal floating piston for consistent damping across the full stroke. Available with standard, heavy-duty, or super heavy-duty spring rates to match rider weight and load.
Features
- Gas-charged mono-tube with internal floating piston
- 1.5" 6061-T6 aluminum body, hard anodized
- Advanced high-flow, deflective disk damping
- Hand-adjustable spring preload
- 1/2" hard chrome shaft, low friction super-finished
- Fully serviceable and rebuildable
- Available in standard 13" or optional low 12" length
- Three spring rate options: standard (up to 240 lbs), heavy duty (up to 370 lbs), super heavy duty for Tri-Glide
Specifications
- Brand: FOX
- Manufacturer Part #: 897-27-309
- UPC: 711745593077
- Length: 28 in
- Width: 8 in
- Height: 4 in
- Weight: 7.8 lbs
- Body Material: 6061-T6 Aluminum, Type III hard anodized
- Shaft: 1/2" hard chrome, low friction super-finished
Fitment
Fits Harley-Davidson Touring models with V-twin engines. Verify your bike's shock mounting and length requirements before ordering.
Frequently Asked Questions
What spring rate should I choose?
Standard rate fits riders up to 240 lbs. Heavy duty handles up to 370 lbs. Super heavy duty is for Tri-Glide models and maximum load applications.
Can I adjust the rebound on these shocks?
Standard IFP shocks do not include rebound adjustment. FOX IFP-QSR versions offer a 3-position adjustable rebound — verify which model you're ordering.
Are these shocks rebuildable?
Yes — FOX shocks are fully serviceable and rebuildable by authorized suspension shops for extended lifespan.
Does this come in a shorter length?
Yes — available in standard 13" or low 12" for riders who prefer a lower seat height.
What's the difference between standard and low lengths?
Low 12" shocks lower the bike's ride height compared to the standard 13" option, affecting ground clearance and seat height.
| BRAND | FOX |
| TYPE | Suspension |
| SKU | 897-27312 |
| WEIGHT | 7.8 lb |
