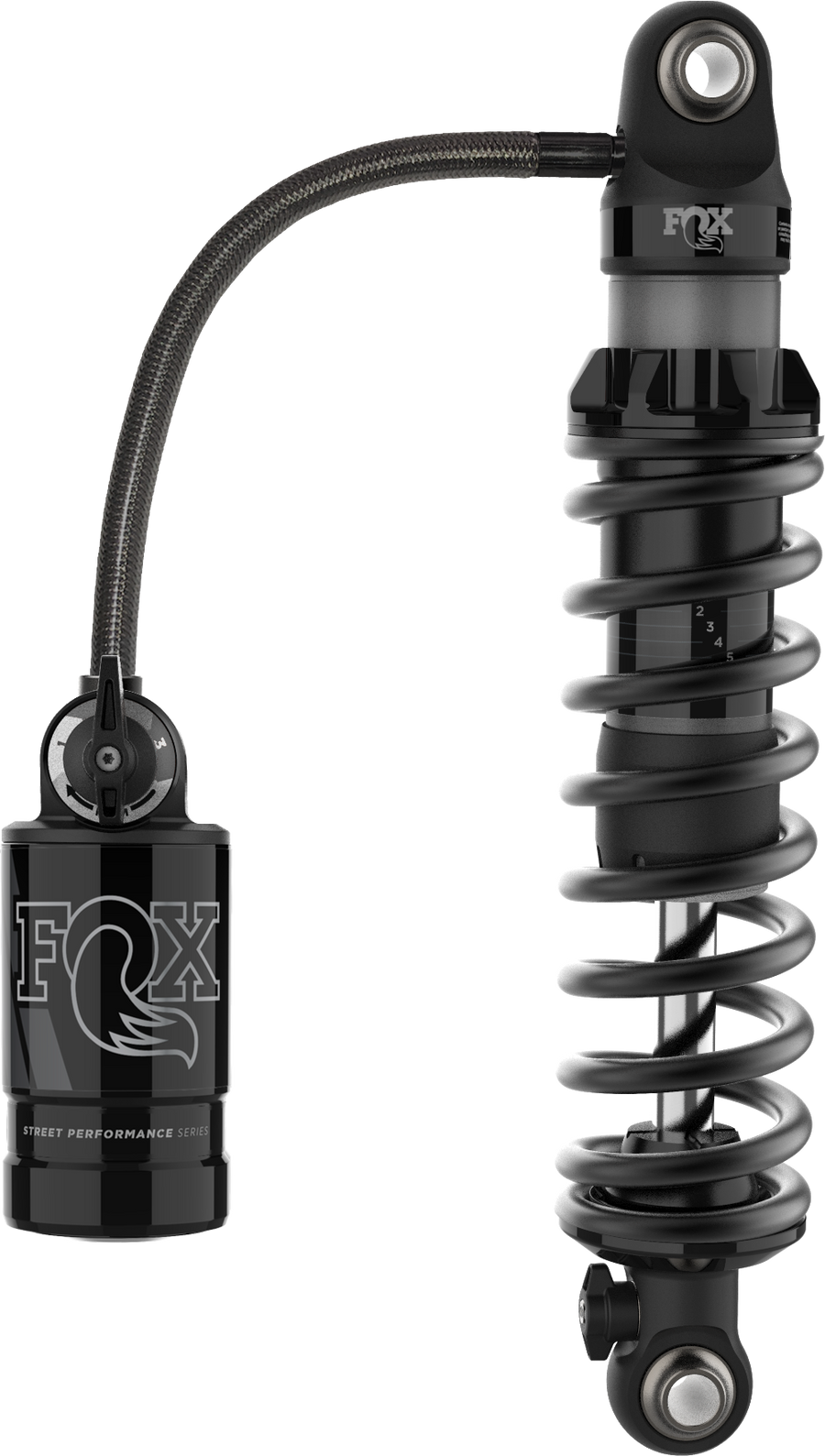

FOX QS3-QSR 14" Remote Reservoir Fully Adjustable Shocks - Harley Touring

The FOX QS3-QSR 14" remote reservoir shocks are a suspension upgrade built around fully adjustable damping. Each unit uses a gas-charged mono-tube design with an internal floating piston, paired with a remote aluminum reservoir that is finished in hard anodizing to help dissipate heat during demanding riding.

Riders choose these shocks for control over how the ride feels. The QS3 three-position quick-switch system lets you adjust both compression and rebound, so you can set the suspension for everyday commuting, longer rides, or more spirited riding and change it as conditions shift. The mono-tube body uses high-flow, deflective speed-sensitive damping to keep the response precise over varied road surfaces.

Construction focuses on long service life. The 5/8" shaft is hard-chromed and super-finished to reduce friction and resist wear, and the shocks are fully rebuildable and re-valvable, so the damping can be serviced and customized over time rather than replaced. The package also includes fender mounting hardware and a non-marring plastic wrench for spring preload adjustment.

Specifications

• Part Number: 897-27-313
• Shock Length: 28.81 in
• Width: 12.25 in
• Height: 4.87 in
• Weight: 15 lbs
• Reservoir: Remote aluminum, hard anodized
• Shaft: 5/8" hard-chromed, super-finished
• Adjustment: QS3 three-position compression and rebound
• Included: Fender mounting hardware, non-marring preload wrench
• Country of Origin: China (Taiwan)
