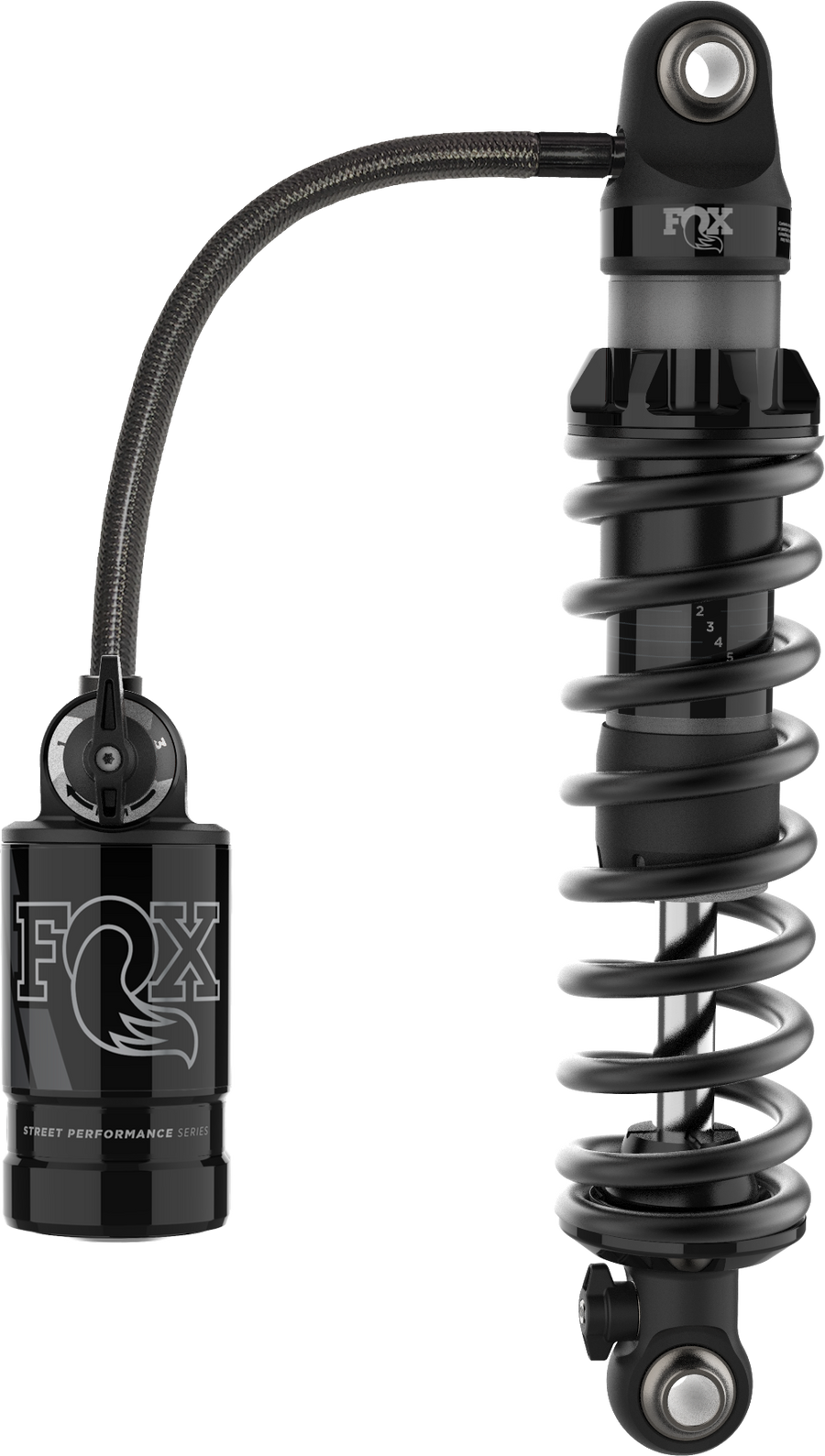

FOX QS3-QSR 14" Remote Reservoir Shocks - Heavy Spring Harley Touring

The FOX QS3-QSR 14-inch remote reservoir shock is a rear suspension unit built for V-twin riders who want precise control over how their bike handles. With 14 inches of travel, it is designed to give a responsive ride whether you are carving through canyons or covering long stretches of highway.

Riders choose this shock for its fully adjustable compression and rebound damping, which lets you tune the ride to your style and load. The gas-charged mono-tube design uses an internal floating piston, and the remote reservoir helps keep damping consistent over time. The heavy-duty spring rate suits aggressive riding or heavier loads.

The 1.5-inch body is made from 6061-T6 aluminum with a Type III hard anodized finish, and the 5/8-inch shaft is hard chrome and super-finished for smooth operation. Quick-switch three-position compression and rebound adjustment allow on-the-fly tuning, speed-sensitive deflective damping responds to changes in terrain, and the shock is fully rebuildable and re-valvable. Fender mounting hardware and a preload wrench are included.

Specifications

• Part Number: 897-27-314
• Travel: 14 inches
• Length: 28.81 in
• Width: 12.25 in
• Height: 4.87 in
• Weight: 15 lbs
• Body Material: 1.5-inch 6061-T6 aluminum, Type III hard anodized
• Shaft: 5/8-inch hard chrome, super-finished
• Included: Fender mounting hardware, preload wrench
