Petty build with nonsense orings insertions.
Job could be easy id it wasn't for the last (small thick one) oring. Putting it back together was too difficult. The oring would not sit in the collar to be able to push it up with the A tool. Wish there was a better way to seat these orings. Would be nice if we can just replace the whole unit as one piece. Ex: lift the check valve, disconnect the gas line, insert the whole piece as one, prebuilt as both orings, spring, and valve in a housing, insert prebuilt piece, connect the gas line back and done. Instead of having to try and shove all the pieces in one by one. My way...NO tools necessary. Disconnect, insert one prebuilt piece, reconnect. That easy.
Works great but you have to use the special tool for removal and installation
I just needed the 1 larger diameter O-ring. It was a tiny bit smaller in thickness. I spent about 5 minutes installing it very carefully with a paper clip. I lubed it with some WD-40, hooked up the fuel line and no leak! The Harley dealer told me it could not be done. Yes it can. I have since put 1,200 miles on the bike with no issues. I bought 2 packs so I had a spare.
It corrected my leak. Did not need the Fuel Tool to replace
Wrong o ring for the job
The valve kit gives the wrong size morning and it still leaks after installation. You need a metric 40x20x2mm to fit the fuel valve spring assembly.
Worked perfectly. On the road, no leaks, and finding my joy.
Worked like it should easy install

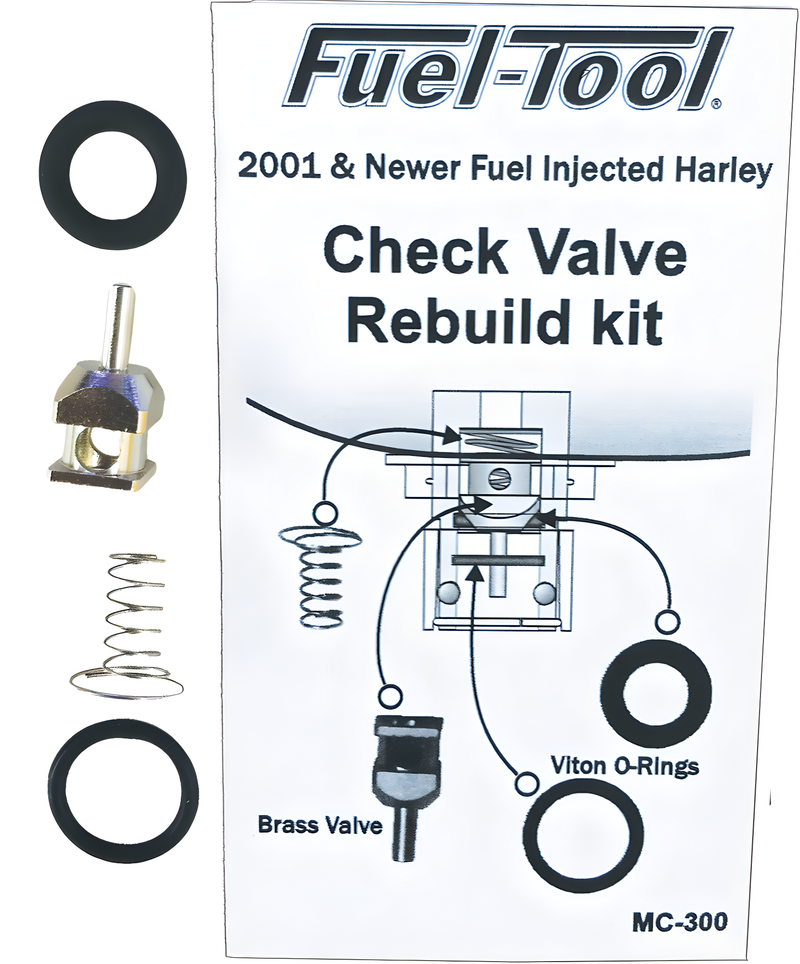

Fuel Tool hd check valve rebuild kit.
Kit works as described. Though I am not sure the lower o-ring is exactly correct. Put three lowers in and valve leaked worse than 20 year old o- ring removed. Talked to customer service at fuel tool, said I had pieces of old o-ring in groove. Don’t think so as I used a dental pick to clean that groove and old o-ring, And out 100% intact. Bought an o-ring from John Deere as recommended on hd forums. Someone also recommended a metric o-ring, it held for two weeks. Fuel tool did offer to send me more o-rings. Use plenty of lube on the o-ring. Btw, I despise fuel injection for reasons such as this. Probably have 8 hours invested over three weeks, two o-ring kits and about $150 for a 10 cent o-ring.
Cheap o ring
cheap o rings...thin one damaged easily
Harley Fuel Check Valve Rebuild Kit
There is a lot of debate on the forums about the lower O-ring not working. I had that issue. Tried several from hardware store per forum rec's, none worked. The FuelTool O-ring leaked worse than the 20 year old one I removed and I validated correct install visually. Seems to be aa material thickness issue. <br />One person on the forum said it is a metric O-ring, bought a metric O-ring kit and issue resolved. 10mm x 14mm x 2mm. <br />Sent Fuel tool an e-mail as well. <br />The tool kit works well.
Works great.
Received as advertised. Fit perfect on my 08 FLSTC
Worked perfectly!
Exactly what was needed, both upper and lower o rings where tore up, causing fuel to leak.
Got it
The kit I bought worked and fixed what Harley dealership was going to charge me for parts I didn’t need to replace. JPC had the obsolete oring and cost was excellent. Did the work myself
Worked great once installed
The service was great
The kit worked great stopped the fuel leak
Perfect
Used it on a sportster where the check valve can not simply be replaced. Gas was leaking out because o rings were disintegrated. Was very easy to instal, took 5 minutes and stopped the gas leak. Remove the gas tank and turn the tank upside down , don’t try to work upside down with tank on bike.
Fixed the leak right away. No fancy tools needed.
Works great
Did what it was supposed to. You do not need the specialized install tool they say you do though. I was able to install it (carefully) using a small pick.
Nice kit. Impossible to find these o-rings in Viton / Metric. Takes care of the leak problem.
This kit is so easy to put in and it works perfectly. No more tring to work out the o ring size.
Everything worked fine for my 2009 electra glide. I only used the o-rings. Just use a little WD40 & the proper tools & you're good.
Worked great , thank you , easy to install with the tool
all good no leaks
Worked as advertised
A little pricey, but did the job quick and easy. Best of all easy to pack so I can help a brother out on the road…
We installed these on a cold day. The leaked but not as much as the previous leak. I ordered another package. In the meantime I rode the bike several times. It stopped leaking. I suspect the heat in the o-ring area softened the rings an allowed them to seal. At the moment, no leaked. Much easier to install if you remove the tank and work on it up side down. Use good tweezers. No need for the $100 tool.
The second o-ring is junk it doesn't stop leaking had to find another one and replace it it ripped in half. The rest of the kit works fine the first o-ring to thick one works perfectly if I had known the other o-ring wouldn't have worked I would not have bought the package
Worked as intended no complaints worth the money
Lower o-ring not quite the same as original.
Part worked as it should solved issue
Inhalation was a breeze, with the check valve tool. Fixed the leak I had. Good product.
Great price and worked just fine. My only advise? Get the installation tool. I didn’t and it was a pain to remove and install with a Mirror and flattened paper clip.
exactly what was needed to repair a leaking fuel check valve
Worked perfect
This was exactly what I needed to fix my leaking check valve. I bought the repair tools as well and it did simplify the process.
Work great
Great, HD needs to take notice
Fits perfectly gonna order another just to have it ready
works
Kit had all parts as presented. Only bottom O ring used.
Worked perfectly. Takes a little finesse with the tool, but it solved my leak issue.
Fit my '02 Deuce perfectly. Used the 722-660 tool.
worked just fine once old o ring completely out.
The fit was right, no problems installing if you purchase the tool.
nice item
Worked out perfect. Just takes a little bit of old school mechanical ability.
Wrong lower oring, I had to purchase a complete check valve on top of buying this repair kit
great place to shop for motorcycle parts friendly service. very knowledgeable staff.
EXCELLENT ITEM THANKS YOU GUYS ALWAYS DELIVER THE BEST
Fit was good. Worked fine no leaks will, buy again.
Perfect match exactly what it needed.
Great product buy it works without any problems you'll fix the fuel leak in 10 minutes !!!
Great product at a great price. Solved my fuel leak and was easy to install with the help of the tool set they make for this.
Great product! Fitting was absolutely perfect! IF in need of the entire hook up, I would say its a good deal. I only needed the two O rings and if I would have purchased them by them selves it would have costed nearly double rather than the rebuild kit. Over all, quality product.
Alls good work fine
Installs pretty simple and easy. All parts fit. Longevity is the only question, but no basis for any concern.
Tried every O-ring kit from different stores. This is the only one that'll work.
As described fast shipping. Well done
Very pleased with the quick shipment of this product.
It worked
Works fine and just as advertised
Part was as expected and shipped very quickly. Took me about 1 hour to replace parts in the check valve and quick connect. Tip: if you don’t have a metal dental pick get a large baby pin, straighten it and fashion a small half-hook on the pointed end. Works great to remove the old o-rings. Just bought a new (used) H-D, first time owning one since a 17 year hiatus into MC’s and this is my first purchase with JPC..would give them A+ for price, quality, shipping. Will be back.
I was very Pleased with the Product. I thank you for getting it to me as soon as you could. I know that if I ever need parts for My Trike, Your's will be the Place that I will go to for Help. Thank You
A lot easier and cheaper than replacing the whole coupler
Works perfect easy to install.
Works like it should
5 Stars
Did not fit
The kit is perfect. I only needed the o ring, but I installed the whole kit. I reccomend purchasing the installation tool if your budget allows.
I installed the orings but the quick disconnect was still leaking. After one day the leaking stopped. I believe the o rings swelled up and sealed .
What can I say? The parts work and seem to be a good quality
It fits, it is a great product.
Harley and two bike shops wanted 950.00 to rebuild entire guts of tank including check valve. Fuel Tool Kit and Fuel tool kit rebuild kit parts completely repaired my 2003 Harley check valve. total, cost 99.00 My O rings were pieces, new ones worked great!!!
O'rings fit just fine but the check vavle pin was to big to fit in the check valve body. Crappy price for items that doesn't fit.
fit like it should, good price and delivery
5-Star
The o-rings are delicate, if you don't have the $100 fuel tool to reinstall (everyone has them on backorder) they can easily tear trying to seat them in the groove.
Identicle to factory parts. Fraction of HD cost. I recommend this kit.
A lot cheaper than going to Harley and buying a new check valve!
Havent installed the parts yet but look and feel like quality goods. Instructions are great.
The kit was well made, however it was a little small for the check valve, the ring kit did not match the Harley rings at ALL, so had to put it in the shop, so waisted about $100 for both
Solved the leaking problem.
This kit lets you repair the female portion of the gas line quick connection. Harley claims it can't be repaired and charges you $43 for the part and $180 to install it. JP sells the kit for about $15 including shipping. They sent it out USPS by mistake the first go around but sent a replacement UPS immediately at no cost. One good measure of a company is how they handle problems and JP did just fine.
With this kit , it will save you time and money from not taking it to a dealer .
This is a good thing since our gas has sugar.lol..O-rings work fine and was a quick fix..
