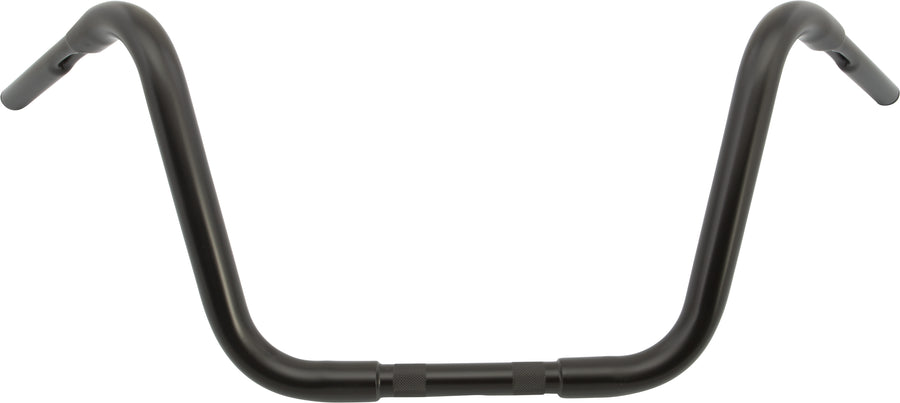

Harddrive 1 1/4" Ape Hanger Handlebars - 12" Black Cable — Harley-Davidson Dyna Wide Glide, Softail Fat Boy, Dyna Fat Bob (2006-2017)

Harddrive 1 1/4" ape hanger handlebars in gloss black with 12" cable routing channels for V-twin motorcycles. These bars taper from 1 1/4" clamp diameter to 1" grip mount and feature internal cable passages for a clean cockpit.

Features

• 1 1/4" diameter through clamping area, tapering to 1" at grip
• Dimpled and drilled for internal cable routing
• Gloss black finish
• Compatible with OEM 1 1/4" riser systems
• Not compatible with Throttle By Wire models

Specifications

• Brand: Harddrive
• Manufacturer Part #: 096481
• UPC: 191361121395
• Diameter: 1 1/4" clamp, 1" grip
• Finish: Gloss Black
• Weight: 0.05 lbs
• Country of Origin: China (Taiwan)

Fitment

Direct fit to 2006-up FXDWG, 2008-2013 FXDF, and 2006-2013 FLSTF/B models with OEM 1 1/4" riser setup. Can be adapted to other V-twin models using aftermarket 1 1/4" risers and top clamp. Not compatible with Throttle By Wire equipped models.

Frequently Asked Questions

Will these bars fit my Harley without new risers?

Yes, if your bike has OEM 1 1/4" risers (FXDWG, FXDF, FLSTF/B models). Other models will need 1 1/4" aftermarket risers and a compatible top clamp.

Are these compatible with Throttle By Wire bikes?

No — these ape hangers are not designed for Throttle By Wire equipped models. Verify your bike does not use TBW before ordering.

How do I route cables through the handlebars?

The bars are dimpled and drilled for internal cable passage. Thread your brake and clutch cables through the clamping area during installation.

Will I need to extend my brake and clutch lines?

Possibly. Ape hanger height may require longer brake and clutch lines depending on your bike and riser choice. Measure before ordering.
