Harddrive 1 1/4" Ape Hanger Handlebars - Chrome 14" 1.25" Thru Clamp - Cable — Harley-Davidson (2006-2017)

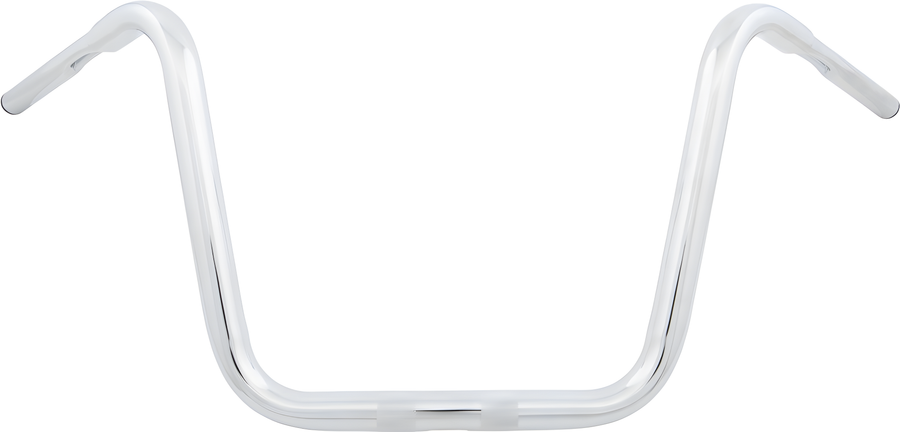

Harddrive 1 1/4" ape hanger handlebars in chrome with a 14" rise, engineered for V-twin cruisers that use OEM 1 1/4" riser setups. Dimpled and drilled for internal cable routing, tapering from 1 1/4" clamp diameter down to 1" grip mount.

Features

• 1 1/4" through-clamp diameter tapering to 1" grip mount
• 14" rise ape hanger profile
• Dimpled and drilled for internal wiring
• Chrome finish
• Cable-operated controls compatible

Specifications

• Brand: Harddrive
• Manufacturer Part #: 096433
• UPC: 191361168888
• Diameter: 1 1/4" clamp / 1" grip
• Rise: 14"
• Weight: 9.886 lbs
• Country of Origin: China (Taiwan)

Fitment

Direct fit for 2006-up FXDWG, 2008-2013 FXDF, and 2006-2013 FLSTF/B models with OEM 1 1/4" risers. Can be adapted to other V-twin models using aftermarket 1 1/4" risers and top clamp. Not compatible with Throttle By Wire models.

Frequently Asked Questions

Will these fit my bike without risers?

If your bike already uses OEM 1 1/4" risers, yes. Other models will need 1 1/4" risers and a matching top clamp to install these bars.

Are these compatible with Throttle By Wire Harleys?

No — these bars are designed for cable-operated controls and will not work on Throttle By Wire models.

Can I run internal wiring through these handlebars?

Yes. The bars are dimpled and drilled to route cables and wiring internally for a cleaner look.

What's the taper from clamp to grip?

The bars are 1 1/4" at the clamp area and taper down to 1" at the grip mount.
