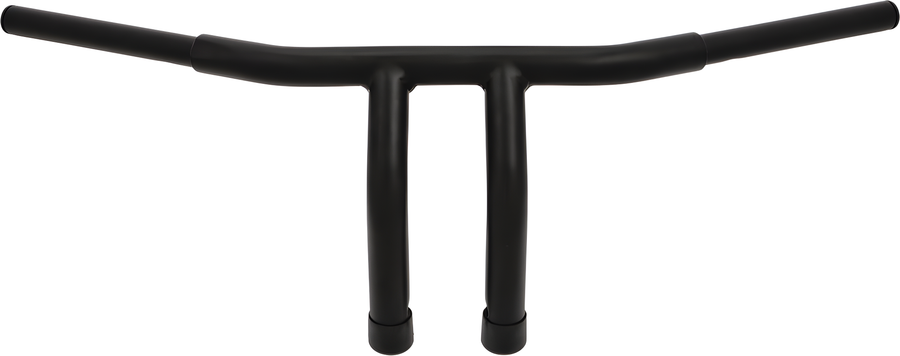

Harddrive Fat Tiller Handlebars - Tiller-BAR 8" Rise Satin Black — Harley-Davidson (1982-2017)

Harddrive Fat Tiller handlebars in satin black, 1-1/4" diameter steel tubing with 8" rise for a laid-back riding position. Heavy-duty construction with internal wiring channels and pull-cord for clean wire routing on most V-twin cruisers.

Features

• 1-1/4" diameter heavy-duty steel tubing
• 8" rise for comfortable laid-back ergonomics
• Satin black finish
• Drilled for internal wiring with pull-cord installed
• Set for 3-1/2" center-to-center riser mounting
• Expert welding and step-jointed construction

Specifications

• Brand: Harddrive
• Manufacturer Part #: 31-0167MB
• UPC: 191361121753
• Diameter: 1-1/4 inch
• Rise: 8 inch
• Width: 28.1 in
• Length: 12 in
• Weight: 5.685 lbs
• Country of Origin: China (Taiwan)

Fitment

Fits most V-twin cruisers model year 1982 and up, except Springers and Touring models with fairings or throttle-by-wire (TBW) systems.

Frequently Asked Questions

Will these fit my Touring model?

No — Fat Tillers are not compatible with Touring models equipped with fairings or throttle-by-wire systems.

Do I need to drill new cable holes?

No — the bars are pre-drilled for internal wiring with a pull-cord installed to make routing easier during installation.

What's the rise measurement?

These have an 8 inch rise, giving a comfortable laid-back seating position without extreme sweep.

Will these fit a Springer frame?

No — Springer models are excluded from compatibility with this bar design.

What diameter are the bars?

1-1/4 inch diameter steel tubing, heavy-duty construction with expert welding throughout.
