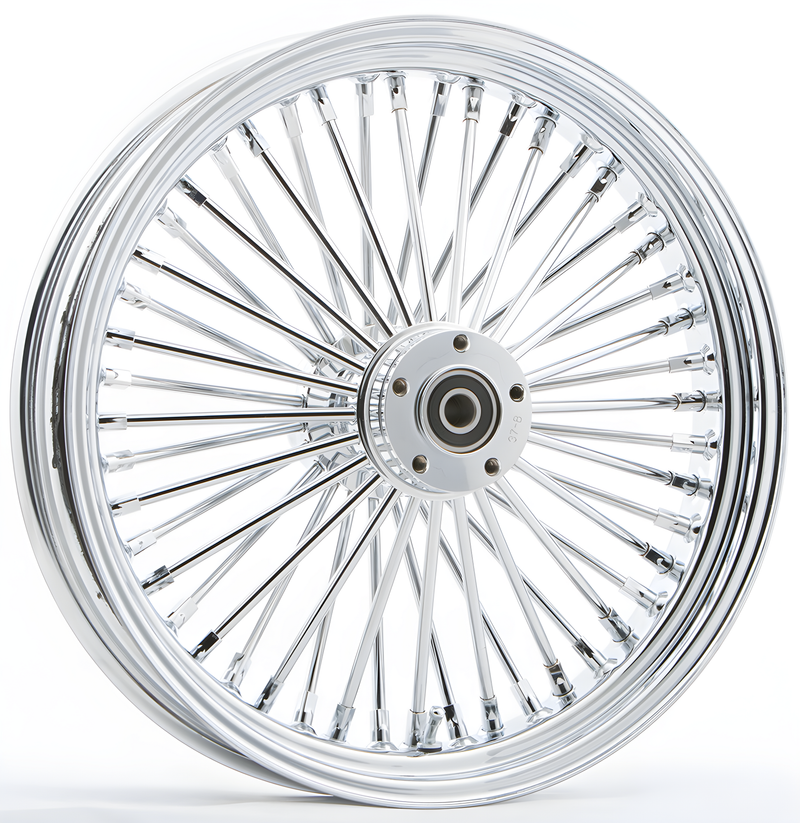

Harddrive Front Spoke Wheels - 48-SPK DD Chrome 16x3.5 WG-HUB 3/4" Axle 00 LTR — Harley-Davidson Dyna Wide Glide (2000-2017)

Harddrive front spoke wheel in 48-spoke chrome pattern, 16x3.5 inches with 3/4" axle hub designed for 2000-up V-twin motorcycles. Comes fully assembled with chrome valve stem, sealed bearings, spoke sealant, and inner sleeve ready to bolt on.

Features

• 48-spoke chrome pattern with 9mm spokes
• 16x3.5 inch sizing
• 3/4" axle hub for 2000-up fitment
• Chrome valve stem and sealed wheel bearings included
• Spoke sealant and inner sleeve included
• Tubeless-ready sealed spokes

Specifications

• Brand: Harddrive
• Manufacturer Part #: 051-02522
• UPC: 191361129643
• Spoke Pattern: 48-spoke chrome
• Rim Size: 16x3.5 inches
• Axle Size: 3/4 inch
• Weight: 26.08 lbs
• Dimensions: 19.5L x 19.4W x 8.6H inches
• Country of Origin: China (Mainland)

Fitment

Fits 2000-up V-twin motorcycles using 3/4" axle hubs. Wheels are designed for custom fitment — verify axle spacing, rotor spacing, and hub width compatibility before installation. Narrow Glide hubs will not accommodate speedo drives.

Frequently Asked Questions

Does this wheel come fully assembled and ready to install?

Yes — it includes sealed bearings, spoke sealant, chrome valve stem, and inner sleeve. Just bolt it on using your 3/4" axle.

Can I use this on a 1984-1999 model?

No — this part is for 2000-up V-twin models with 3/4" axles. 1984-99 fitment requires Timken bearings with outer seal and different spacing.

Do these wheels require maintenance?

Yes. Spoke wheels require regular service-interval maintenance. This may disturb the sealant, which is not covered under warranty.

Will this wheel swap onto other V-twin models?

2000-up wheels can have bearings and sleeves swapped to fit other sizes and applications, but axle spacing and rotor clearance must be verified for your specific bike.

Are these tubeless or tube-type wheels?

Tubeless-ready sealed spokes, but verify your bike's rim setup before ordering.
