Harddrive Front Spoke Wheels - 48-SPK SD Black 23x3.5 WG-HUB 1" AXL 00 LTR — Harley-Davidson (2000-2026)

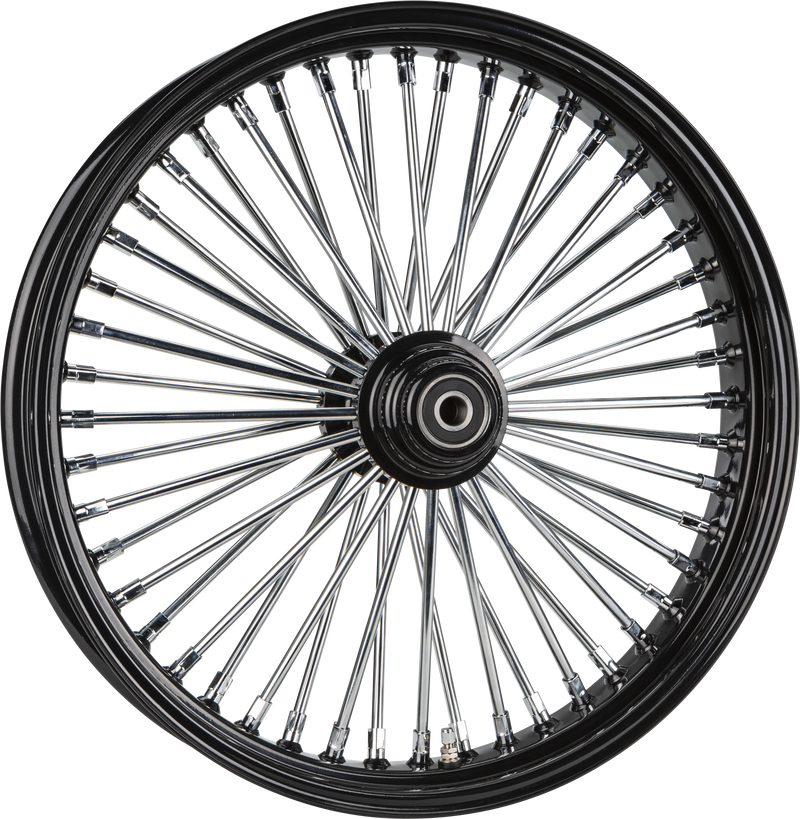

Harddrive front spoke wheel with 48 fat spokes and steel black rim laced to a black billet aluminum hub. Sized 23x3.5 inches with 1-inch axle and sealed wheel bearings, designed for custom V-twin applications that may require modified axle or rotor spacing.

Features

• 48 fat spokes with 9mm diameter
• Steel black rim laced to black billet aluminum hub
• Chrome valve stem included
• Spoke sealant and sealed wheel bearings included
• Tubeless application ready
• Swappable bearing and sleeve for multiple model fitment (2000-up)

Specifications

• Brand: Harddrive
• Manufacturer Part #: 052-14531
• UPC: 191361264405
• Wheel Size: 23 x 3.5 inches
• Axle Size: 1 inch
• Hub Material: Black billet aluminum
• Rim Material: Steel black
• Spoke Pattern: 48 spokes
• Spoke Diameter: 9mm
• Length: 25.6 in
• Width: 8.7 in
• Height: 25.6 in
• Weight: 26.4 lbs
• Country of Origin: China (Mainland)

Fitment

Fits V-twin motorcycles with 1-inch front axle. Wheels are designed for custom fitment and may require modified axle spacing and/or rotor spacing. Bearings and sleeve are swappable on 2000-up models to fit other applications. Narrow Glide hubs will not accommodate speedo drive.

Frequently Asked Questions

Will this wheel fit my specific Harley or Indian model?

Check the fitment chart for axle size and hub width match. These are custom fitment wheels that may require modified axle or rotor spacing, so verify measurements before ordering.

Do these wheels come with bearings?

Yes — sealed wheel bearings are included, along with spoke sealant, chrome valve stem, and inner sleeve.

Can I use these on multiple bikes?

2000-up wheels have swappable bearings and sleeves to expand fitment to other applications. Pre-2000 wheels are fixed to their original specifications.

Are these tubeless or tube-type wheels?

Sealed for tubeless application, but spoke wheels require regular maintenance that may disturb the sealant.

Do I need a speedo drive with these wheels?

Narrow Glide hubs will not accommodate speedo drive, so verify your hub width before ordering if you need one.
