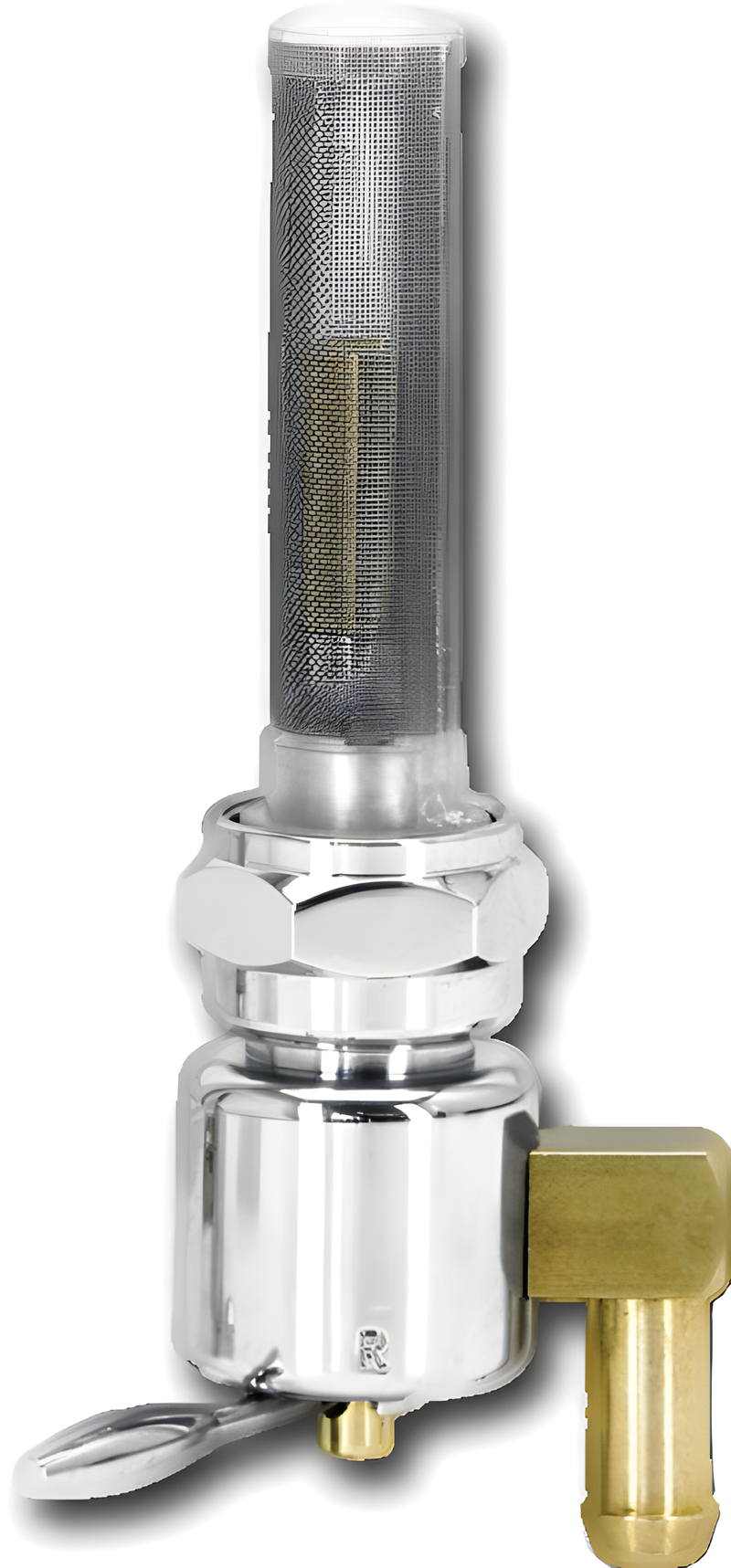

Harddrive Petcock - 22mm Bung Down Spigot Chrome — Harley-Davidson Softail Heritage Classic, Electra Glide Classic, Electra Glide (1975-2026)

Harddrive 22mm petcock with bung-down spigot outlet in polished chrome, designed for Harley-Davidson Big Twin and Sportster fuel tanks. Handles main and reserve fuel flow with the reliability trusted by V-twin riders nationwide.

Features

• Polished and chrome-plated finish
• 22mm metric thread fits 1975-present Big Twin and Sportster
• Bung-down spigot outlet configuration
• Maximizes fuel flow in main and reserve modes
• Fits most custom fuel tanks

Specifications

• Brand: Harddrive
• Manufacturer Part #: 022602
• UPC: 191361073779
• Length: 6 in
• Width: 2 in
• Height: 1 in
• Weight: 0.55 lbs
• Country of Origin: China (Taiwan)

Fitment

Fits 1975 to present Harley-Davidson Big Twin and Sportster models, as well as most custom fuel tanks with 22mm metric bungs.

Frequently Asked Questions

Will this petcock fit my custom fuel tank?

If your tank has a 22mm metric bung, it will fit. Most aftermarket custom tanks use this standard size.

What's the difference between main and reserve mode?

Main mode draws fuel from the upper portion of the tank. Reserve mode draws from the bottom, giving you extra fuel when the main supply runs dry.

Is this a gravity-fed or vacuum-operated petcock?

This is a gravity-fed design — fuel flows down through the spigot without requiring engine vacuum.

Can I use this on a 1974 or earlier Harley?

No — this 22mm petcock fits 1975 and newer Big Twin and Sportster models. Pre-1975 bikes use different fuel-system designs.
