Harddrive Rear Spoked Wheels - 48-SPK Black 18x3.5 BT/XL-HUB 1" AXL 00 LTR — Harley-Davidson (2000-2026)

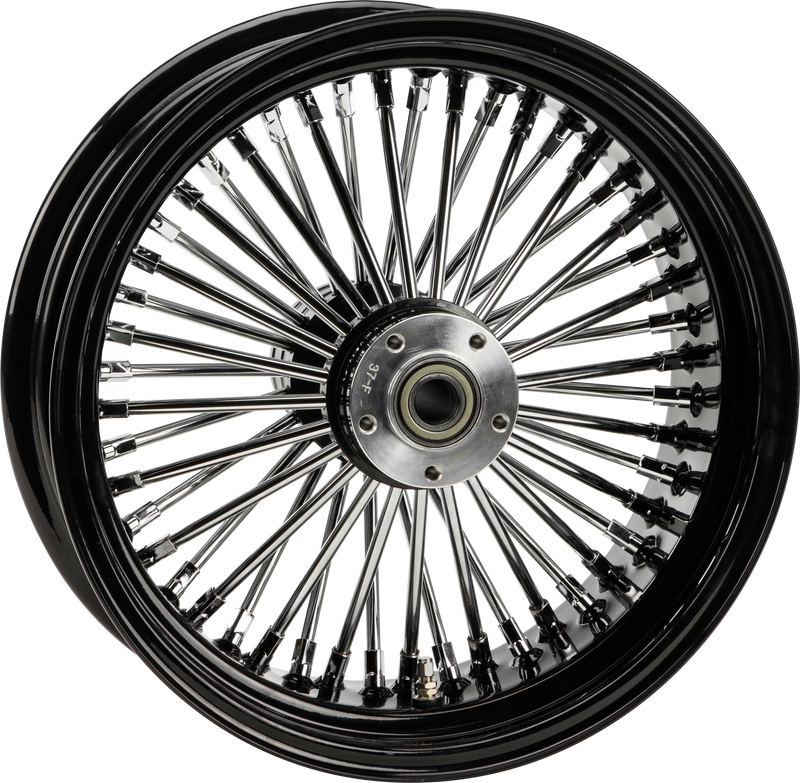

HardDrive rear spoked wheel in 48-spoke black pattern, 18-inch diameter with 3.5-inch rim width, designed for Big Twin and XL-hub applications with 1-inch axle. Steel rim laced to a black billet aluminum hub with 9mm spokes, includes spoke sealant, chrome valve stem, inner sleeve, and sealed wheel bearings.

Features

• 48-spoke fat-spoke pattern with 9mm spokes
• Black steel rim laced to black billet aluminum hub
• Spoke sealant and chrome valve stem included
• Sealed wheel bearings pre-installed
• Tubeless application ready
• Swappable bearings and sleeve for multi-model compatibility (2000-up)

Specifications

• Brand: HardDrive
• Manufacturer Part #: 052-0458
• UPC: 191361264290
• Diameter: 18 inches
• Rim Width: 3.5 inches
• Spoke Count: 48
• Spoke Size: 9mm
• Hub Material: Black billet aluminum
• Rim Material: Steel
• Length: 21.7 in
• Width: 8.5 in
• Height: 21.7 in
• Weight: 22 lbs
• Country of Origin: China (Mainland)

Fitment

Fits Big Twin and XL-hub applications with 1-inch axle. Wheels are built for custom fitment and may require modified axle spacing and/or rotor spacing. Verify axle size, hub width, and rotor usage before ordering. Narrow Glide hubs will not accommodate speedo drive.

Frequently Asked Questions

Do these wheels come with bearings installed?

Yes. Sealed wheel bearings are pre-installed and ready to bolt on. 84-99 fitments include ¾" Timken bearings with outer seal (greasing required).

Are these wheels tubeless?

Yes, sealed for tubeless application. However, spoke wheels require periodic service maintenance which may disturb the sealant. Sealant damage is not covered under warranty.

Will this wheel fit my Narrow Glide?

Narrow Glide hubs will not accommodate speedo drive with these wheels. Verify your hub type and axle size before ordering.

Can I swap bearings to fit other models?

Yes. 2000-up wheels allow you to swap bearings and sleeves to expand compatibility onto other applications and models.

What's included in the box?

The wheel, spoke sealant, chrome valve stem, inner sleeve, and sealed wheel bearings (pre-installed). Additional hardware varies by fitment.
