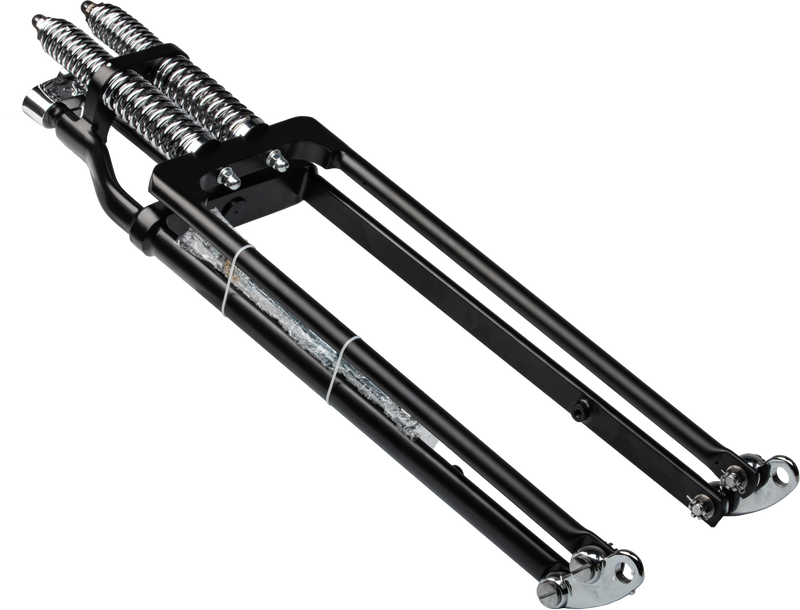

Harddrive Springer Fork Tapered Leg - +2 Black — Harley-Davidson Sportster 1200 Custom, Sportster 883, Sportster 883 Custom (2000-2007)

Harddrive springer fork tapered leg in +2 black for V-twin custom builds, featuring one-piece forged rear legs and precision bronze rocker bushings. TIG welded construction with zinc-plated steering stem; includes 3/4" axle, spacers, and hardware for Harley Narrow Glide wheels on 2000-07 Sportster and 2000-03 Dyna models.

Features

• One-piece forged heavy-duty rear legs
• 1" diameter wishbone front legs
• Precision fit bronze rocker bushings
• TIG welded construction
• Zinc-plated 1" steering stem
• 1" diameter steering stem accepts 1/2"-20 fine thread risers (4.75" center-to-center spacing)
• Black powder coat finish
• Includes 3/4" axle and Narrow Glide wheel spacers

Specifications

• Brand: Harddrive
• Manufacturer Part #: 062-400
• UPC: 191361265044
• Length: 40 in
• Width: 6.5 in
• Height: 14 in
• Weight: 50 lbs
• Country of Origin: China (Mainland)

Fitment

Designed for 2000-07 Harley Sportster and 2000-03 Dyna models (except FXDWG) with Narrow Glide wheels and 11.5" brake rotors. Custom frame modification may be required. Compatible with other V-twin applications using 3/4" axle bearings, though wheel spacers may need custom fabrication.

Frequently Asked Questions

Does this fit my Dyna Wide Glide or other wide-glide wheels?

Included spacers are specific to Harley Narrow Glide wheels only. Wide Glide and other 3/4" bearing wheels can be used but require custom-cut spacers.

What's included in the box?

The springer fork legs, 1" steering stem, 3/4" axle, wheel spacers for Narrow Glide wheels, and all mounting hardware.

Will this fit my 2008+ Sportster?

This kit is designed for 2000-07 Sportster. Later model years may require frame modification verification — contact the manufacturer with your specific year.

Do I need to modify my frame for installation?

Custom frame modification may be needed depending on your bike's design. Professional fabrication is recommended.

What size risers does the steering stem accept?

The 1" diameter stem accepts 1/2"-20 fine thread risers with 4.75" center-to-center spacing, matching OEM Harley springer geometry.
