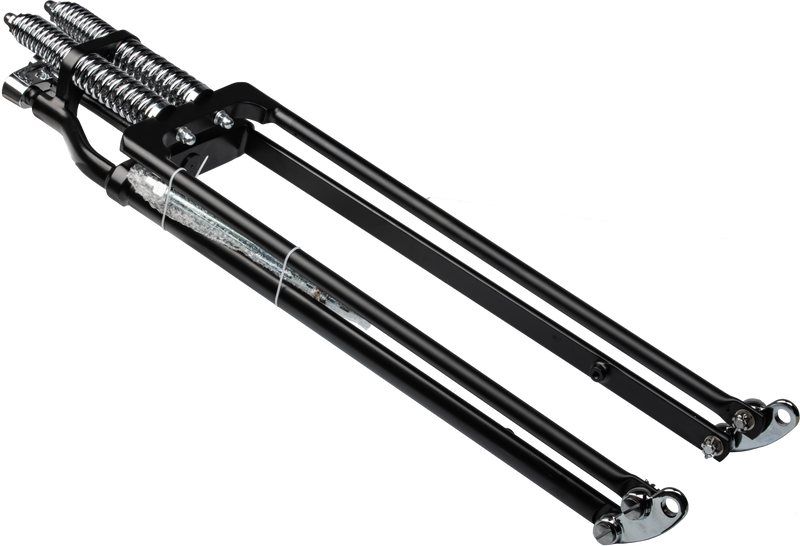

Harddrive Springer Fork Tapered Leg - +8 Black — Harley-Davidson Sportster 1200 Custom, Sportster 883, Sportster 883 Custom (2000-2007)

Harddrive springer fork tapered leg in +8 inch extension and black powder coat finish for V-twin cruisers. One-piece forged construction with TIG welding, bronze rocker bushings, and a zinc-plated 1-inch steering stem. Includes 3/4-inch axle and wheel spacers sized for Harley Narrow Glide wheels on 2000-07 Sportster and 2000-03 Dyna models.

Features

• Heavy-duty one-piece forged rear legs
• 1-inch diameter wishbone front legs
• Precision-fit bronze rocker bushings
• TIG welded construction
• Zinc-plated 1-inch diameter steering stem
• Black powder coat finish
• Includes 3/4-inch axle and wheel spacers

Specifications

• Brand: Harddrive
• Manufacturer Part #: 062-700
• UPC: 191361265068
• Length: 40 in
• Width: 6.5 in
• Height: 14 in
• Weight: 50 lbs
• Country of Origin: China (Mainland)

Fitment

Fits 2000-07 Harley-Davidson Sportster and 2000-03 Dyna (excluding FXDWG) with Harley Narrow Glide wheels and 11.5-inch brake rotors. Custom application — frame modification may be required. Top tree accepts 1/2-inch-20 fine thread risers with 4.75-inch center-to-center spacing (OEM Harley compatible).

Frequently Asked Questions

Will this fit my Wide Glide wheels?

Wide Glide and other wheels with 3/4-inch bearings can be used, but you will need to cut your own wheel spacers since included spacers fit Narrow Glide only.

What's included in the box?

The springer fork tapered leg assembly, 1-inch steering stem, 3/4-inch axle, and wheel spacers for Narrow Glide wheels on 2000-07 Sportster and 2000-03 Dyna models.

Do I need frame modifications to install this?

This is a custom application and frame modification may be needed depending on your specific bike and desired stance.

What brake rotor size does this require?

The included wheel spacers are designed specifically for an 11.5-inch Harley brake rotor with Springer-type brake calipers.

Can I use different risers?

Yes — the top tree accepts any 1/2-inch-20 fine thread risers. The center-to-center spacing is 4.75 inches, matching OEM Harley Springer geometry.
