KPMI Cylinder Dowel - Dowels EVO Pkg. 4 EVO BIG Twin 1984-1999/XL 1986-2014 — Harley-Davidson (1984-2014)

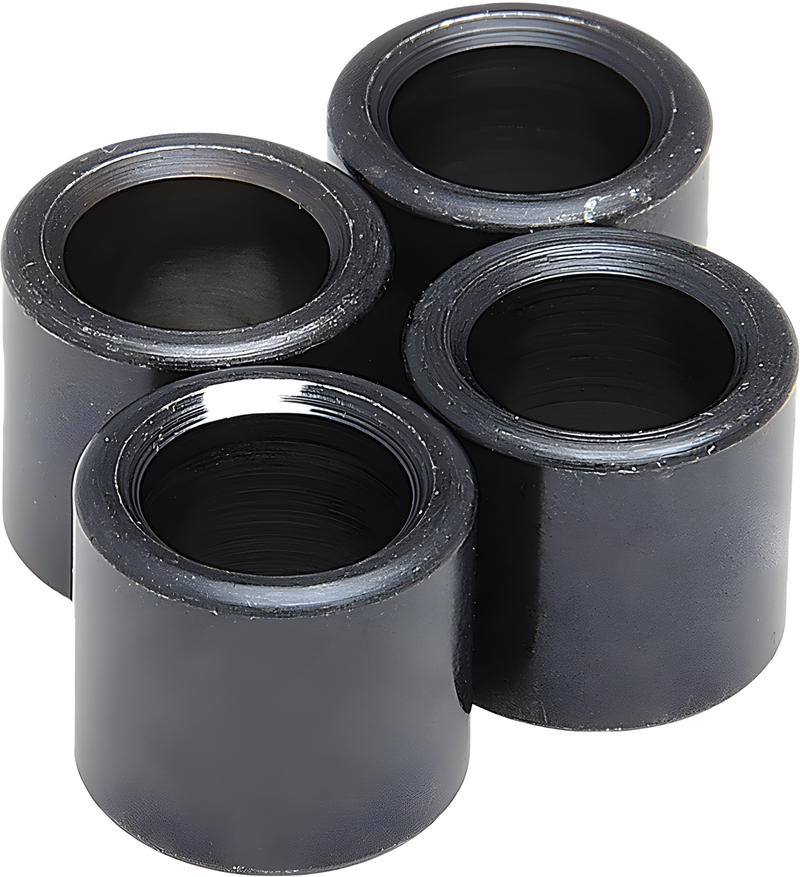

KPMI cylinder dowels are machined steel alignment pins with black oxide finish, sold in a 4-pack for EVO Big Twin and Sportster engines. Use during top-end reassembly to ensure cylinders seat true to the crankcase without galling or distortion.

Features

• Steel construction with black oxide finish
• 4-pack quantity
• Prevents cylinder misalignment during reassembly
• Replaces OEM dowels that may be galled or distorted

Specifications

• Brand: KPMI
• Manufacturer Part #: 83070-4
• Quantity: 4 per pack
• Length: 1 in
• Weight: 0.08 lbs

Fitment

Fits Harley-Davidson EVO Big Twin engines 1984-1999 and Sportster (XL) models 1986-2014.

Frequently Asked Questions

Why would I need new dowels?

Original dowels often become galled, scored, or distorted during removal. New dowels ensure clean, accurate cylinder seating during a top-end rebuild.

How many dowels do I need?

This 4-pack covers one complete top-end job on an EVO Big Twin or Sportster.

Will these fit my Twin Cam engine?

No — these dowels are for EVO engines only (1984-1999 Big Twin and 1986-2014 Sportster). Twin Cam engines use different dowel specifications.

Do I need any special tools to install?

No — dowels are hand-placed into the crankcase bore during cylinder installation. A light coat of assembly lube helps with alignment.
