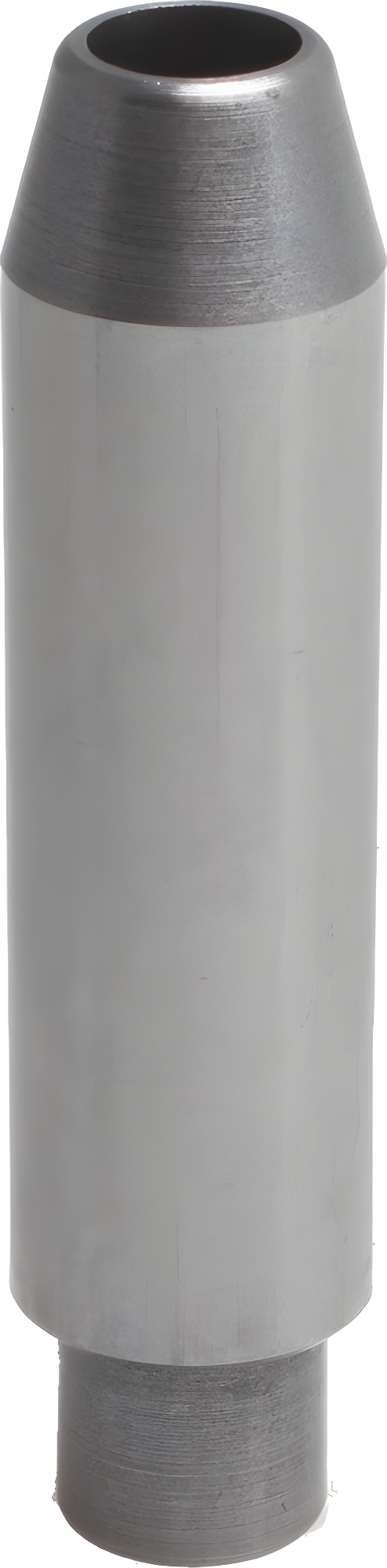

KPMI Valve Guide - EX +0.003 Cast Iron HD EVO 1984-1999 Sportster 1986-2003 — Harley-Davidson (1984-2004)

KPMI exhaust valve guide in cast iron, sized at +0.003 in oversize for Harley EVO and Sportster engines. Direct replacement for worn or damaged OEM guides that require precision boring and installation in the cylinder head.

Features

• Cast iron construction
• EX +0.003 in oversize
• Precision fit for cylinder head boring

Specifications

• Brand: KPMI
• Manufacturer Part #: 20-2133C
• Material: Cast iron
• Size: EX +0.003 in oversize
• Length: 1.15 in
• Weight: 0.08 lbs

Fitment

Fits Harley-Davidson EVO engines (1984-1999) and Sportster engines (1986-2003) as an exhaust valve guide replacement.

Frequently Asked Questions

What does +0.003 in oversize mean?

The guide is machined 0.003 inches larger than OEM spec, requiring the cylinder head bore to be reamed to match before installation.

Will this fit both EVO and Sportster engines?

Yes — this part fits EVO engines 1984-1999 and Sportster engines 1986-2003 as an exhaust guide.

Is installation a DIY job?

No — valve guide installation requires precision cylinder head boring and press-fit equipment. Have a machine shop or engine builder handle this.

What's the difference between intake and exhaust guides?

Exhaust guides run hotter and experience more wear. This is the exhaust version — intake guides use a different part number.
