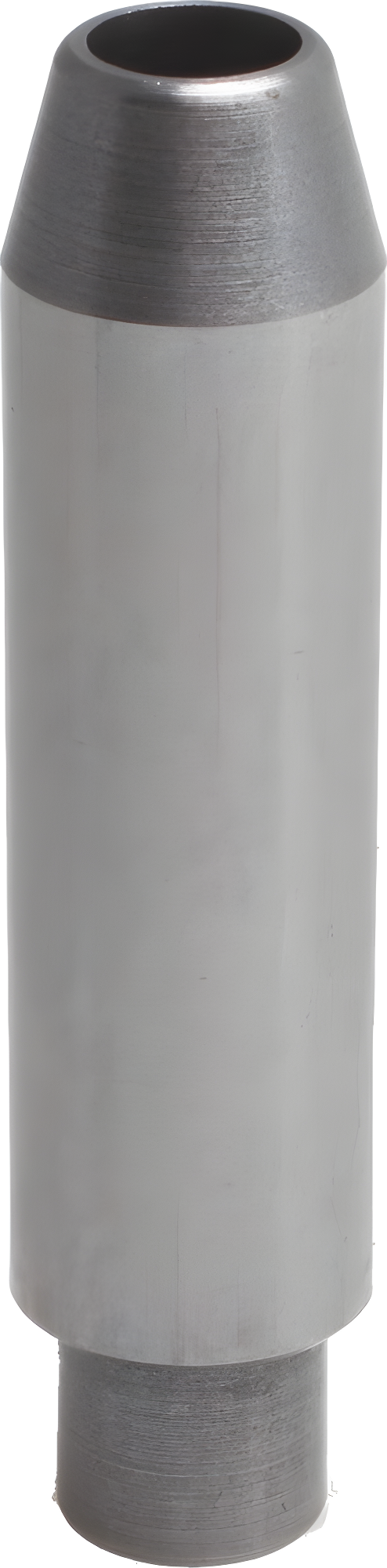

KPMI Valve Guide - EX +0.003 Cast Iron HD PAN 2048-1965 & Shovel 1966-1977 — Harley-Davidson Electra Glide (1955-1977)

KPMI exhaust valve guide in cast iron, sized +0.003 in oversize for Harley Panhead and Shovelhead big-twin engines. Direct replacement for worn guides that require precision reboring and installation into the cylinder head.

Features

• Cast iron construction
• Exhaust (+0.003 in) oversize specification
• 3.45 in length

Specifications

• Brand: KPMI
• Manufacturer Part #: 20-2033C
• Type: Exhaust valve guide
• Material: Cast iron
• Oversize Specification: +0.003 in
• Length: 3.45 in
• Weight: 0.04 lbs

Fitment

Fits Harley Panhead engines 1948–1965 and Shovelhead engines 1966–1977.

Frequently Asked Questions

What does +0.003 in oversize mean?

The guide bore is 0.003 inches larger than stock, requiring corresponding oversize valve stems or a precision rebore of the valve seat.

Do I need both exhaust and intake guides?

Check your engine — wear may affect both guides. KPMI makes separate intake and exhaust part numbers.

Can I install this myself?

Valve guide installation requires a press and proper tooling. Most riders have a qualified machine shop or engine builder handle the job.

Will this fit my 1978+ Shovelhead?

No — this guide is for 1966–1977 Shovelheads. Later Evolution and Twin Cam engines use different guide sizes.
