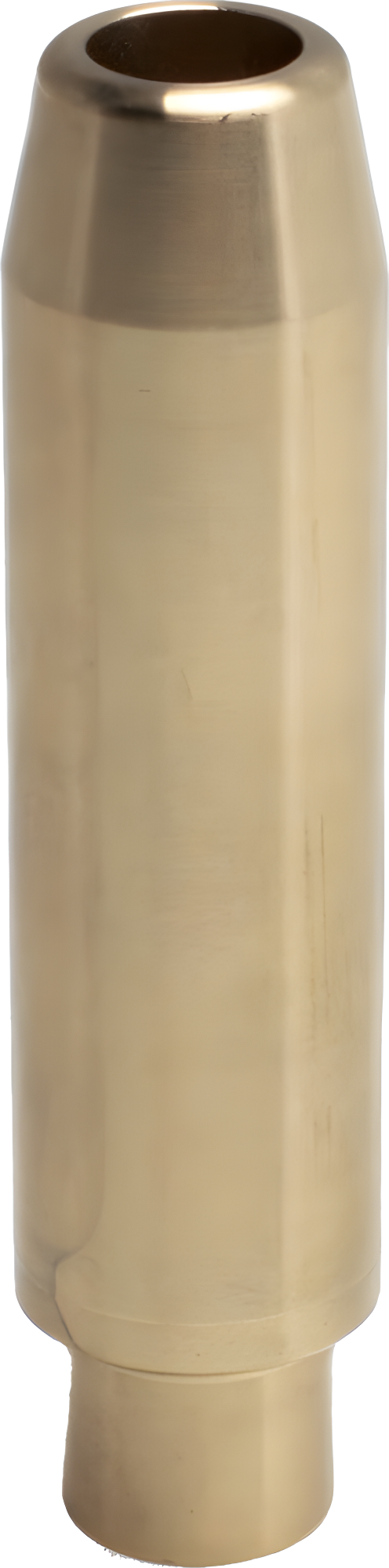

KPMI Valve Guide - EX +0.004 Bronze HD PAN 2048-1965 & Shovel 1966-1977 — Harley-Davidson Electra Glide (1955-1977)

KPMI exhaust valve guide in bronze, sized +0.004 in oversize for Harley Panhead and Shovel big-twin engines. Direct replacement for original guides that restores proper valve sealing when worn guides are bored oversize.

Features

• Bronze construction
• Exhaust (EX) position
• Oversize +0.004 in specification
• Direct replacement for original Panhead and Shovel guides

Specifications

• Brand: KPMI
• Manufacturer Part #: 20-2034
• Material: Bronze
• Position: Exhaust
• Size: +0.004 in oversize
• Length: 0.95 in
• Width: 3.6 in
• Height: 0.85 in
• Weight: 0.08 lbs

Fitment

Fits Harley-Davidson Panhead (1948-1965) and Shovelhead (1966-1977) engines with bores sized for +0.004 in oversize valve guides.

Frequently Asked Questions

What does +0.004 in oversize mean?

The guide is sized 0.004 inches larger than the original. Your cylinders must be bored to this spec before installation.

Is this for intake or exhaust?

This is an exhaust valve guide. A separate intake guide (part number ending in -IN) is available if both are needed.

Will this fit my 1970 Shovelhead?

Yes — this fits all Shovelhead engines from 1966-1977.

Does this fit pre-1948 Panheads?

No — this is sized for 1948-1965 Panhead big-twins. Earlier models may use different bore sizes.
