KPMI Intake Valve Guide +0.002 Bronze - Harley Twin Cam 2005-2013
About KPMI
Kibblewhite Precision Machining supplies valves, valve springs, guides and complete top-end kits used by professional V-twin engine builders. Its black diamond valves and spring kits are a standard specification on high-lift cam builds.

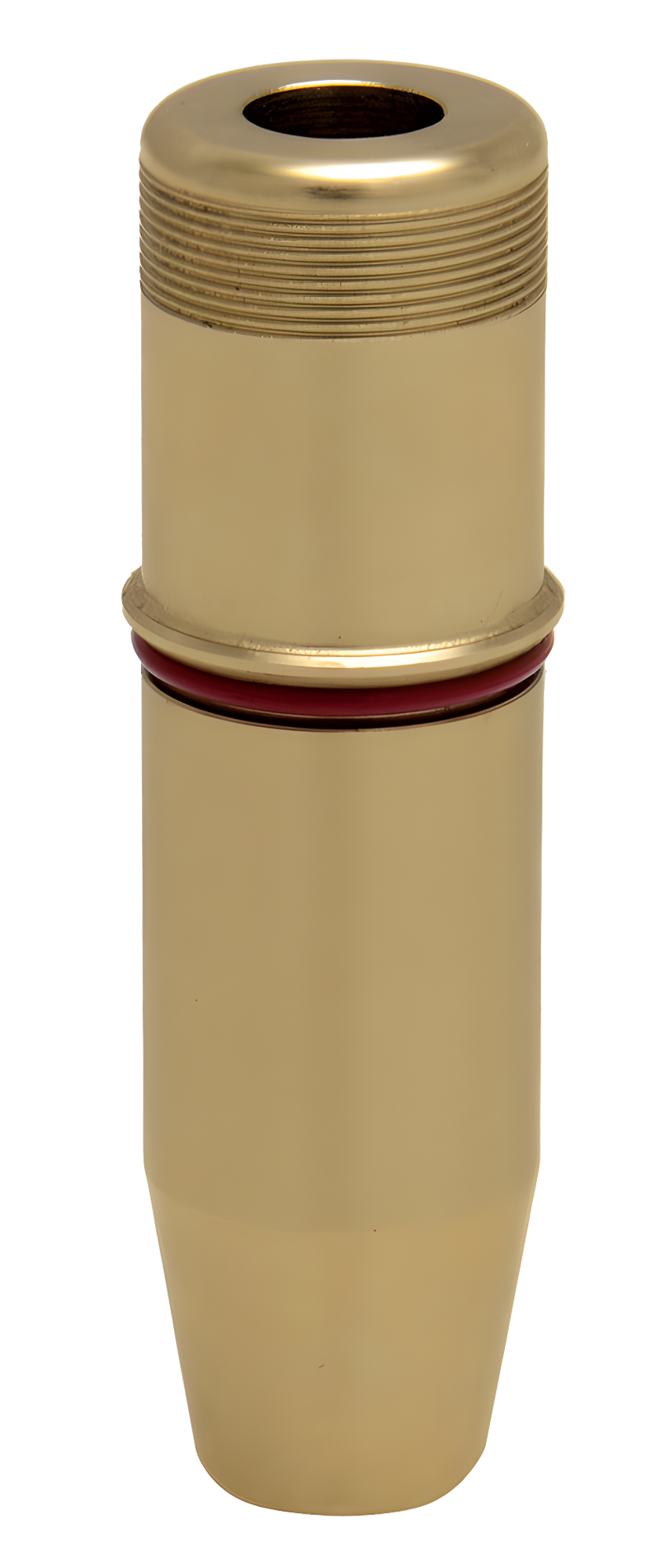

This KPMI bronze intake valve guide is engineered for Harley Twin Cam 88 and 103 cubic inch engines from 2005 to 2013. Sized at +0.002 inch oversize, it's designed to accommodate slightly worn valve seats and restore proper valve-to-guide clearance.
Why riders pick this
- Premium bronze construction
- Intake valve position
- +0.002 inch oversize
- Fits Twin Cam 88 and 103 engines
- For 2005-2013 Harley Twin Cam
Maintaining optimal valve guide clearance is paramount for the performance and longevity of your Twin Cam engine. This KPMI bronze intake valve guide offers a precision solution for 2005-2013 Harley models, especially when addressing minor wear in the cylinder head or valve stem. The +0.002 inch oversize ensures a snug fit, preventing excessive valve play and contributing to consistent power delivery and reduced oil consumption.
Performance and Durability for Twin Cams
- Constructed from high-quality bronze for enhanced wear resistance and improved heat transfer
- Specifically designed for the intake valve position on Twin Cam 88 and 103 engines
- Features a +0.002 inch oversize specification to correct minor wear in the valvetrain
- Direct replacement guide for 2005-2013 Harley-Davidson Twin Cam models
Twin Cam Top-End Maintenance
When performing a top-end refresh on your Twin Cam, selecting the right valve guide is crucial. This KPMI bronze guide is an excellent choice for restoring factory clearances. While it's a direct replacement, proper installation often involves reaming the cylinder head to ensure a perfect fit and concentricity. Always consult your service manual or a professional machine shop to ensure correct installation procedures for your specific year and model.
Specifications
- Brand: KPMI
- Manufacturer Part #: 20-20692
- Size: +.002 oversize
- Length: 0.9 in
- Width: 3.45 in
- Height: 0.65 in
- Weight: 0.09 lbs
Common questions
What does '+.002 oversize' mean?
The +.002 oversize specification means the guide's bore diameter is 0.002 inches larger than a standard guide. This size is used when the original guide or valve stem has experienced slight wear, helping to restore proper clearance.
Will this fit my 2014 or newer Harley with a Milwaukee-Eight engine?
No, this KPMI valve guide is specific to Twin Cam engines from 2005-2013. Milwaukee-Eight engines utilize different valve guides, and this part will not be compatible.
Do I need to ream the cylinder head after installing this guide?
Installation procedures can vary. While this guide is designed to address wear, some applications may benefit from reaming the cylinder head for optimal concentricity and fit. We recommend consulting your service manual or a qualified machine shop for precise installation instructions specific to your engine.
Ordering from Vtwinbikers
- Brand new, sourced through authorized US distribution — never used, never grey-market.
- Not sure it fits? Use Shop by Bike to filter by your year and model, or email us and we will confirm before you order.
- Harley-Davidson and Indian Motorcycle is all we do, so you are talking to people who ride what you ride.
| BRAND | KPMI |
| TYPE | Engine |
| SKU | 191-57050 |
| WEIGHT | 0.09 lb |
