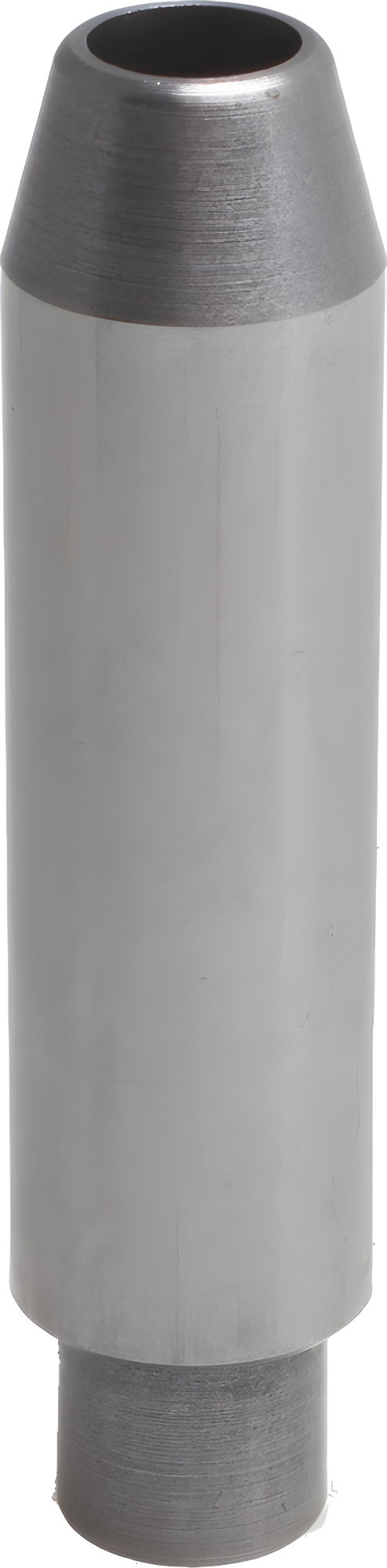

KPMI Valve Guide Intake +0.002 Cast Iron - Harley Panhead & Shovelhead
About KPMI
Kibblewhite Precision Machining supplies valves, valve springs, guides and complete top-end kits used by professional V-twin engine builders. Its black diamond valves and spring kits are a standard specification on high-lift cam builds.
This KPMI intake valve guide, made from durable cast iron and featuring a +0.002 inch oversize, is engineered for Harley-Davidson Panhead and Shovelhead engines. It's a direct replacement for worn factory guides, helping to restore valve train integrity and prevent excessive oil consumption in older V-twins.
Why riders pick this
- Durable cast iron construction
- +0.002 inch oversized for worn cylinder heads
- Restores proper valve stem clearance
- Direct fit for Harley Panhead and Shovelhead
- Helps reduce oil consumption
When bringing an older Harley-Davidson Panhead (1948-1965) or Shovelhead (1966-1977) engine back to life, addressing valve guide wear is crucial. This KPMI cast iron intake valve guide, with its +0.002 inch oversize, provides a precise solution for cylinder heads that have experienced slight wear in their guide bores. Its robust cast iron construction ensures durability and a consistent thermal expansion rate that closely matches your cylinder head, contributing to long-term reliability.
Engineered for Reliable Performance
- Robust cast iron construction for durability
- +0.002 inch oversize for precise fit in worn bores
- Designed specifically for the intake valve position
- Direct replacement for Harley Panhead and Shovelhead engines
Essential for Engine Longevity
Proper valve guide clearance is fundamental for maintaining consistent valve action and preventing oil from entering the combustion chamber. This KPMI intake guide allows you to machine your cylinder head to a precise, slightly larger dimension, ensuring a snug fit and optimal performance. It's a key component for any serious top-end overhaul on these iconic Harley-Davidson platforms, helping to extend the life and efficiency of your engine.
Specifications
- Brand: KPMI
- Manufacturer Part #: 20-2022C
- Length: 1.15 in
- Width: 3.55 in
- Height: 0.85 in
- Weight: 0.07 lbs
Common questions
What does +0.002 oversize mean?
The guide has an outer diameter that is 0.002 inches larger than the standard size. This requires the cylinder head bore to be reamed or machined to match the oversized guide for a correct press fit.
Will this fit my 1966 Shovelhead?
Yes, this KPMI intake valve guide is compatible with all Harley-Davidson Shovelhead engines from 1966 through 1977, as well as Panhead engines from 1948-1965.
Is this for an intake or exhaust valve?
This part is an intake valve guide only. If you need exhaust guides, you will need to order the corresponding exhaust part number separately.
Ordering from Vtwinbikers
- Brand new, sourced through authorized US distribution — never used, never grey-market.
- Not sure it fits? Use Shop by Bike to filter by your year and model, or email us and we will confirm before you order.
- Harley-Davidson and Indian Motorcycle is all we do, so you are talking to people who ride what you ride.
| BRAND | KPMI |
| TYPE | Engine |
| SKU | 191-57043C |
| WEIGHT | 0.07 lb |
