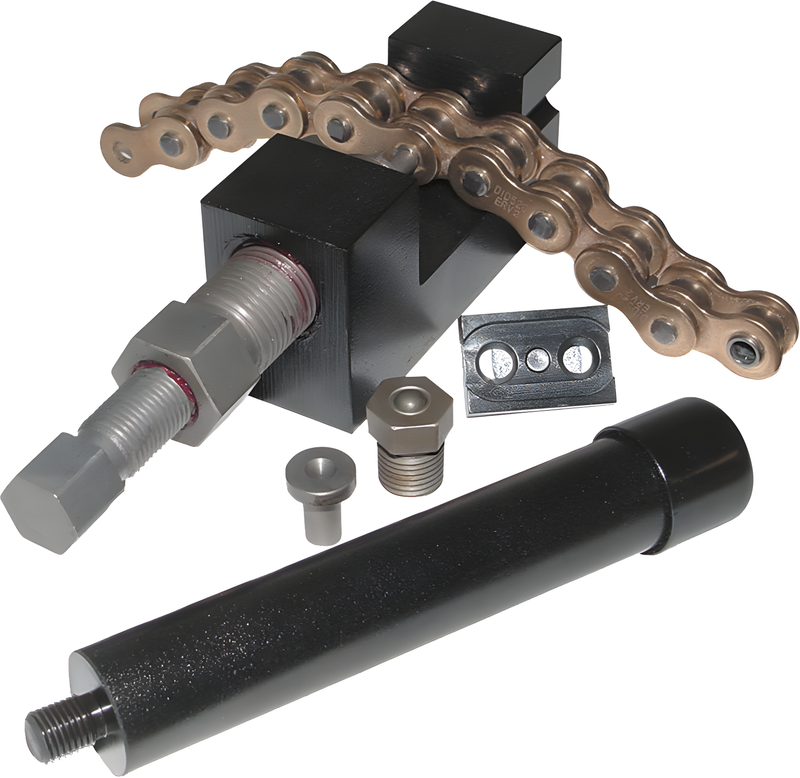

Motion Pro Jumbo Chain Tool

Motion Pro Jumbo Chain Tool is a professional-grade chain breaker and riveter for V-twin motorcycles, handling roller chains #520 through #630. Built from heat-treated 86L20 steel with a guided extractor pin and master link press kit, it breaks any chain size but rivets up to #530.

Features

• Breaks roller chain up to #630 (#520–#630 compatible)
• Rivets chain up to #530 (does not rivet #630)
• Master link side plate press kit included
• 86L20 heat-treated steel construction
• Removable guide pin for long tool life
• Bolts to workbench, vise, or handheld operation
• Compatible with air or electric wrenches when mounted
• Made in the U.S.A.

Specifications

• Brand: Motion Pro
• Manufacturer Part #: 08-0135
• Length: 6.88 in
• Width: 2.36 in
• Height: 2.36 in
• Weight: 2.26 lbs
• Country of Origin: United States

Fitment

Fits V-twin motorcycles using standard and O-ring roller chains. Compatible with chain sizes #520 through #630 for breaking; riveting limited to #530 and smaller.

Frequently Asked Questions

Can this tool rivet a #630 chain?

No — the jumbo tool breaks #630 chains but only rivets up to #530. For #630 riveting, use the separate Motion Pro Quad stake rivet kit (57-8142).

How do I set up the tool for breaking vs. riveting?

The tool handles both operations. Bolts to a workbench or vise for heavy use, or clamp by handle for lighter jobs. Swap components as needed for each operation.

Can I use an air wrench with this tool?

Yes — when bolted to a solid surface, you can use air or electric wrenches to drive the chain through the breaker mechanism.

Is the master link press kit included?

Yes — the press kit for side plates up to #530 comes in the box.

What steel are the screws and attachments made from?

86L20 heat-treated steel for maximum durability under heavy use.
