2000 HD Electra Glide Standard. I have a mechanic experience level of a solid -2. I was able to take this one apart to change the direction of the vacuum and install by myself in less than an hour. It is a tight fit on the vacuum line but it does fit. Very comparable difference to the POS aftermarket one I bought the bike with.

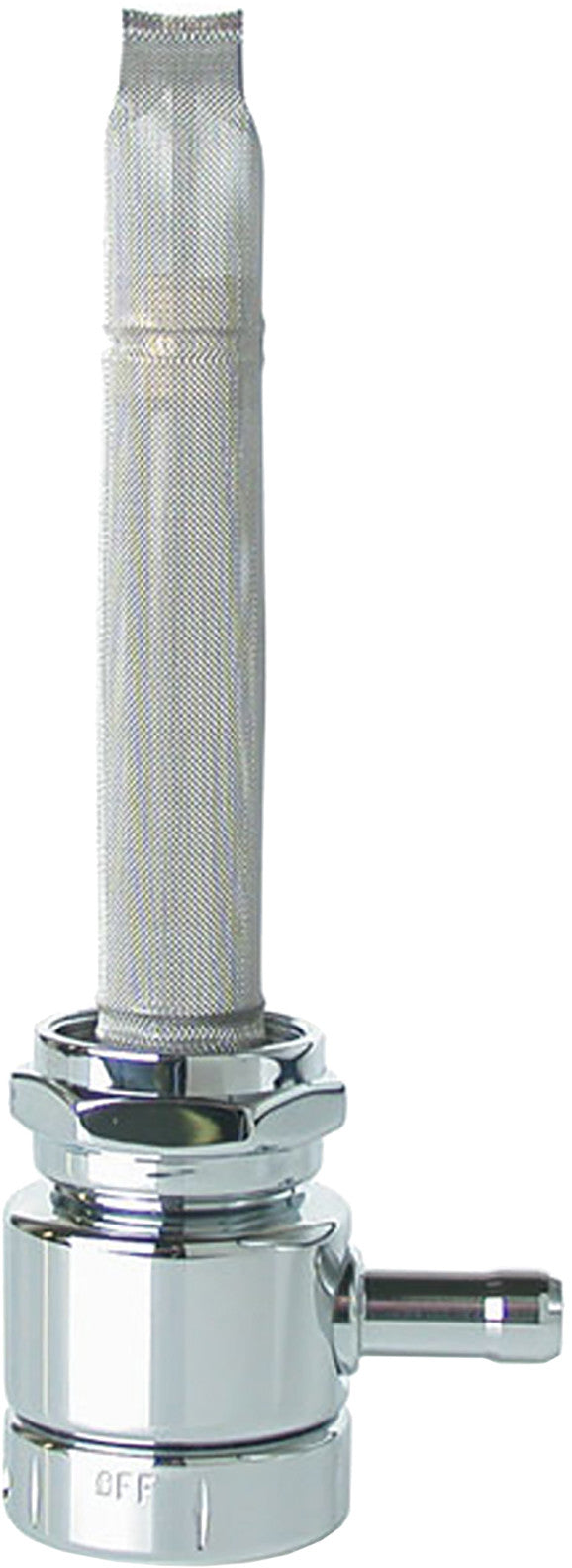

Pingel Ent Petcock - Chrome 22mm RES Knob Cntrl
Pingel Ent petcock in chrome with reserve fuel knob control, engineered as a universal-fit fuel valve for V-twin motorcycle tanks. The 22mm inlet and 5/16" outlet accommodate 1975-and-up applications across most tank locations.
Features
- 6000-series valve design fits nearly any tank location
- 22mm inlet for 1975 and later V-twins
- 5/16" outlet barb
- Chrome finish
- Reserve fuel knob control
- Show Chrome and Polished Brass options available
Specifications
- Brand: Pingel Ent
- Manufacturer Part #: 6311-CR-K
- Inlet Size: 22mm
- Outlet Size: 5/16" barb
- Finish: Chrome
- Length: 4.45 in
- Width: 8.05 in
- Height: 2.5 in
- Weight: 0.57 lbs
Fitment
Fits most V-twin motorcycles with 1975-and-up fuel tank designs. Universal mounting design works in nearly every tank location, though clearance should be verified on your specific application.
Frequently Asked Questions
Will this fit my Harley or Indian?
Yes — the 6000-series universal design fits most Harley-Davidson and Indian Motorcycle fuel tanks from 1975 onward. Always verify inlet/outlet sizes and tank clearance for your model.
What's the difference between this and model 274-0504?
This model includes reserve fuel knob control. Model 274-0504 does not have a reserve function.
Can I use this as a replacement on an older bike?
Yes — the 22mm inlet and 5/16" outlet barb make it compatible with 1975-and-up V-twin fuel systems. Check your tank inlet diameter before ordering.
Is the reserve knob adjustable?
The reserve function allows you to shut off fuel flow, leaving a reserve supply in the tank for emergency ride-out.
| BRAND | Pingel Ent |
| TYPE | Intake/Carb/Fuel System |
| SKU | 274-0503 |
| WEIGHT | 0.57 lb |
Can’t give this item a bad review. Solid construction and chrome was flawless.. Vacuum diaphragm housing was larger and had interference with head bolt.
Delivery was fast. Product is well made,did need to rotate the vacuum port 90 degrees,to the top so valve would fit. Will continue to use JP,great service.
This is a well build product. Far better than the factory fuel valve. I just wish it wasn't so expensive. But that's the price for quality.
Good quality and easy install. The nylon seal has a groove inside the petcock nut that helps ensure its in the right position and the instruction are super simple and easy to understand, making sure you get the petcock on properly with no leaking. I'm not giving 5 starts though just because I think this thing is way over priced. $200+ is ridiculous. It's a simple valve, vacuum diaphragm and screen filter.
Excellent
Great petcock
