2000 HD Electra Glide Standard. I have a mechanic experience level of a solid -2. I was able to take this one apart to change the direction of the vacuum and install by myself in less than an hour. It is a tight fit on the vacuum line but it does fit. Very comparable difference to the POS aftermarket one I bought the bike with.

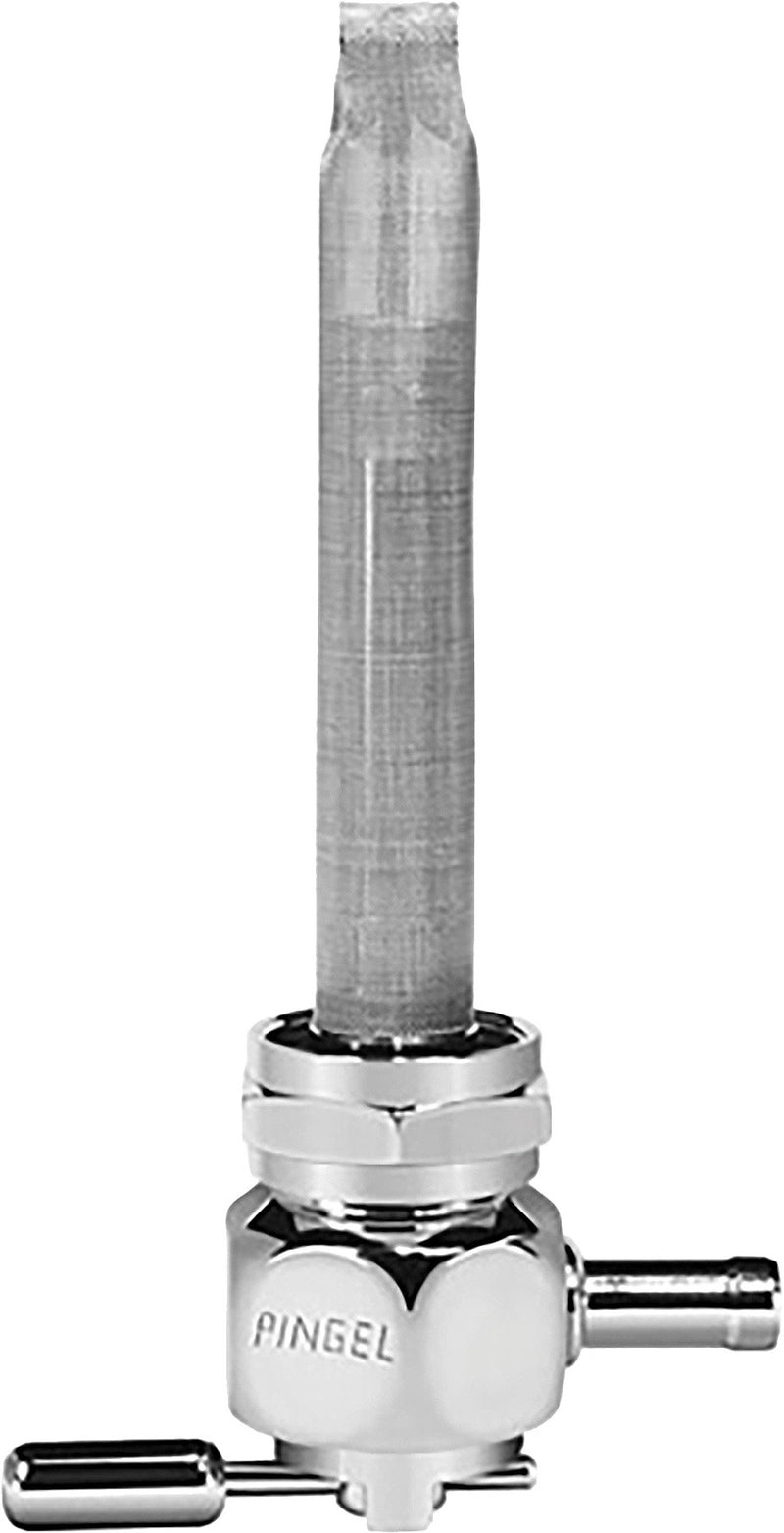

Pingel Ent Petcock - Oval 22mm RES Chrome `75-UP — Harley-Davidson Softail Heritage Classic, Electra Glide Classic, Electra Glide (1975-2026)
Pingel Ent oval petcock in show chrome for 1975-up V-twin motorcycles with 22mm inlet and reserve fuel function. Universal-fit 6000 series valve body mounts in almost any tank location without modification.
Features
- 6000 series valve — universal fit for most tank locations
- 22mm inlet for 1975-up applications
- 5/16" outlet barb
- Reserve fuel function included
- Show chrome finish
Specifications
- Brand: Pingel Ent
- Manufacturer Part #: 6311-CHO
- Inlet Size: 22mm
- Outlet Barb: 5/16"
- Length: 4.4 in
- Width: 8.1 in
- Height: 2.5 in
- Weight: 0.495 lbs
Fitment
Fits V-twin motorcycles, primarily 1975 and newer Harley-Davidson and Indian Motorcycle models that use a 22mm inlet.
Frequently Asked Questions
Will this petcock fit my 1975+ Harley tank?
The 6000 series valve is a universal fit that works in almost every tank location. Check your inlet size (22mm) before ordering.
Does this have a reserve fuel function?
Yes — this model includes reserve. If you want a non-reserve version, check Pingel part number 274-0504.
What outlet size does it have?
5/16" barb outlet for standard fuel line connection.
Is show chrome the only finish available?
Pingel offers this valve in Show Chrome and Polished Brass finishes. Check the available options for this part number.
| BRAND | Pingel Ent |
| TYPE | Intake/Carb/Fuel System |
| SKU | 274-0500 |
| WEIGHT | 0.5 lb |
Can’t give this item a bad review. Solid construction and chrome was flawless.. Vacuum diaphragm housing was larger and had interference with head bolt.
Delivery was fast. Product is well made,did need to rotate the vacuum port 90 degrees,to the top so valve would fit. Will continue to use JP,great service.
This is a well build product. Far better than the factory fuel valve. I just wish it wasn't so expensive. But that's the price for quality.
Good quality and easy install. The nylon seal has a groove inside the petcock nut that helps ensure its in the right position and the instruction are super simple and easy to understand, making sure you get the petcock on properly with no leaking. I'm not giving 5 starts though just because I think this thing is way over priced. $200+ is ridiculous. It's a simple valve, vacuum diaphragm and screen filter.
Excellent
Great petcock
