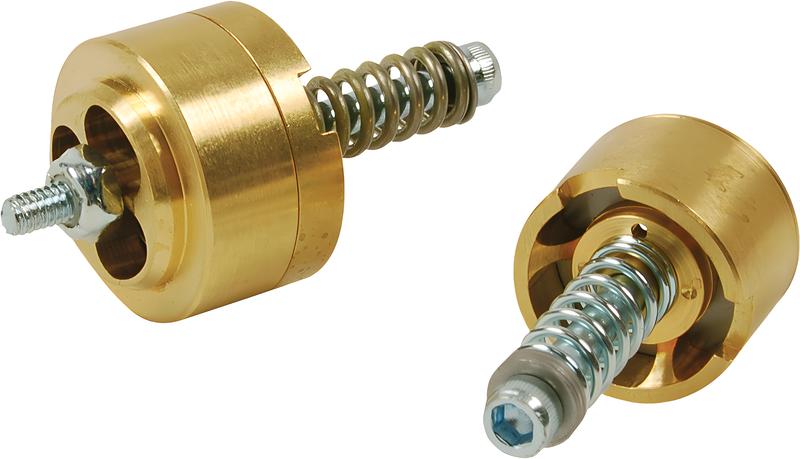

Race Tech Gold Valve Cartridge Emulator — Harley-Davidson Road King, Dyna Wide Glide, Softail (1980-2013)

Race Tech Gold Valve Cartridge Emulator converts damping rod forks into tunable cartridge-style performance by replacing the fixed orifice with adjustable valve cartridges. Sits atop the damping rod and installs without modifications—no spring removal or fork disassembly required.

Features

• Adjustable damping valve replaces fixed orifice design
• Converts damping rod forks to cartridge-style performance
• No fork disassembly needed for installation
• Held in place by existing main spring

Specifications

• Brand: Race Tech
• Manufacturer Part #: FEGV S3802
• Length: 5.35 in
• Width: 5.4 in
• Height: 1.7 in
• Weight: 0.47 lbs

Frequently Asked Questions

What forks does this fit?

Damping rod style forks found on many cruisers and touring bikes. Verify your fork uses a damping rod (not a cartridge) before ordering.

Do I need to remove my forks to install this?

No — the cartridge emulator sits atop the damping rod and is held by the main spring. Installation does not require fork removal or disassembly.

How does this improve harsh and bottoming-out forks?

The adjustable valve replaces the fixed orifice design, allowing you to dial in damping curves like a cartridge fork instead of being limited to spring rate and oil viscosity changes.

Can I adjust the damping after installation?

Yes — the cartridge is tunable. Race Tech provides adjustment procedures for compression and rebound damping to suit your weight and riding style.
