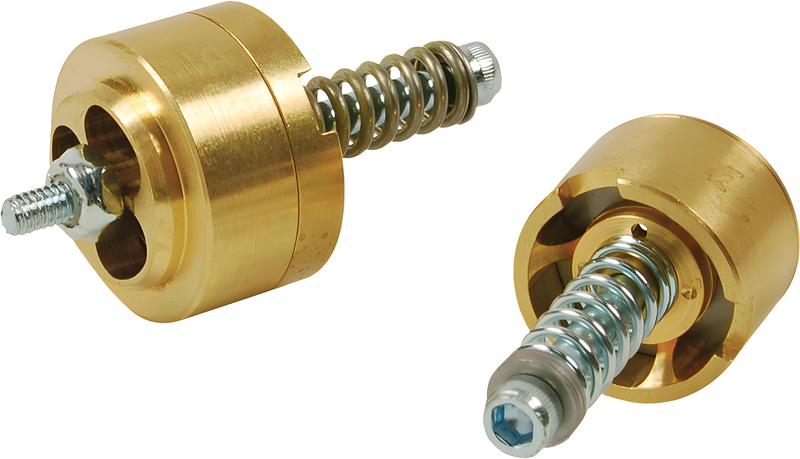

Race Tech Gold Valve Cartridge Emulator - Harley — Harley-Davidson Road King, Electra Glide Ultra Limited, Street Glide (2014-2022)

Race Tech Gold Valve Cartridge Emulator converts damping rod forks into tunable cartridge-style suspension by replacing the fixed orifice design with adjustable valving. Installs directly on top of the damping rod and held in place by the main springs—no fork disassembly required.

Features

• Converts damping rod forks to cartridge-style performance
• Tunable valve adjustment for compression and rebound
• Simple installation without fork removal
• Improves bottoming resistance

Specifications

• Brand: Race Tech
• Manufacturer Part #: FEGV S4901
• Length: 5.3 in
• Width: 5.45 in
• Height: 1.95 in
• Weight: 0.75 lbs

Frequently Asked Questions

Do I need to remove my forks to install this?

No. The cartridge emulator sits on top of the damping rod and is held in place by your stock main springs, making installation straightforward without fork removal.

Will this improve my fork's bottoming problem?

Yes. By converting your fixed-orifice damping rod design to adjustable valving, you can tune compression to resist bottoming while maintaining proper rebound.

Is this compatible with all damping rod forks?

Race Tech cartridge emulators are designed for specific fork geometries. Verify the part number matches your fork model before ordering.

Can I adjust the valving after installation?

Yes. The tunable valve allows you to adjust compression and rebound characteristics to suit your riding style and road conditions.
