S&S Cycle Cylinder & Piston Kits — 1986-2003 Harley-Davidson Sportster Models

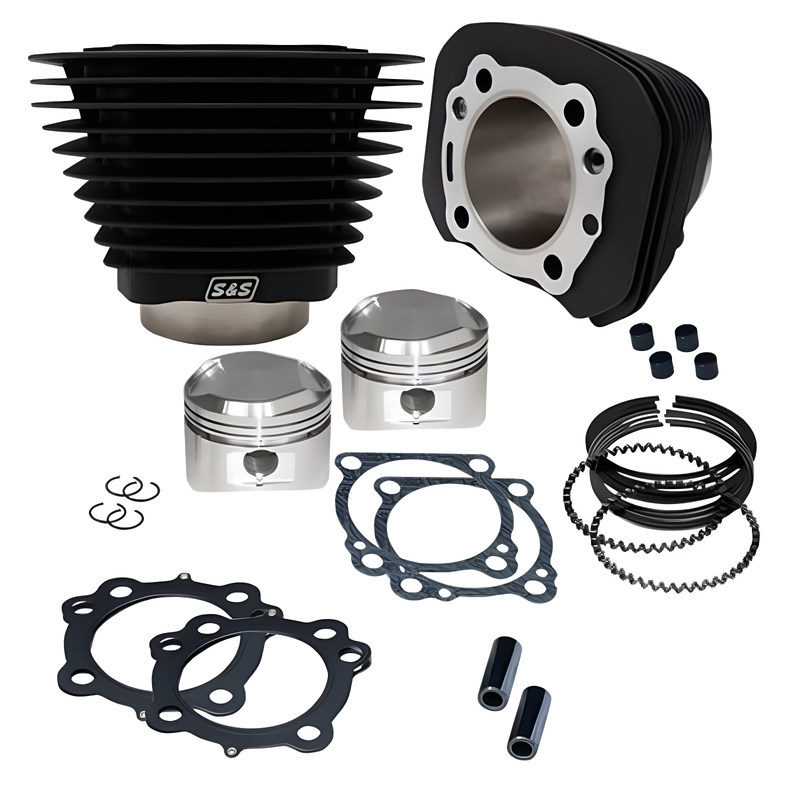

S&S Cycle 1200cc cylinder and piston kit for 1986-2003 Harley Sportster, featuring a 3-1/2" bore S&S cylinder in wrinkle black powder coat with matched forged pistons and gasket set. Compression ratio is 10.5:1 with no flywheel balancing required when installed in 1200cc engines.

Features

• 3-1/2" bore S&S cylinder with wrinkle black powder coat
• Forged pistons matched to cylinder
• Includes head, base, and exhaust gaskets
• 10.5:1 compression ratio
• No flywheel balancing needed for 1200cc applications

Specifications

• Brand: S&S Cycle
• Manufacturer Part #: 910-0696
• Bore Size: 3-1/2 inches
• Compression Ratio: 10.5:1
• Cylinder Finish: Wrinkle black powder coat
• Weight: 30.05 lb
• Category: Engine Components / Piston Sets - Powersports

Fitment

Fits 1986-2003 Harley-Davidson Sportster models. Designed for use with S&S Super Stock cylinder heads.

Frequently Asked Questions

Do I need to balance my flywheel with this kit?

No balancing is required when installed in 1200cc engines. If installing in an 883cc engine, stock flywheel balancing is recommended.

What gaskets are included?

Head gasket, base gasket, and exhaust gasket are all included in the kit.

Will this fit my 883cc Sportster?

Yes, but you should have the stock flywheel balanced if using this kit in an 883cc engine.

What is the compression ratio?

10.5:1 compression ratio provides a boost in performance over stock.
