S&S Cycle has built American V-twin performance parts in Viola, Wisconsin since 1958 — flywheels, carburetors, cams, cylinder heads and complete crate engines. When a Harley owner talks about a 124, a 128 or a 131 build, they are usually talking about S&S. Few names carry more weight with engine builders in this space.

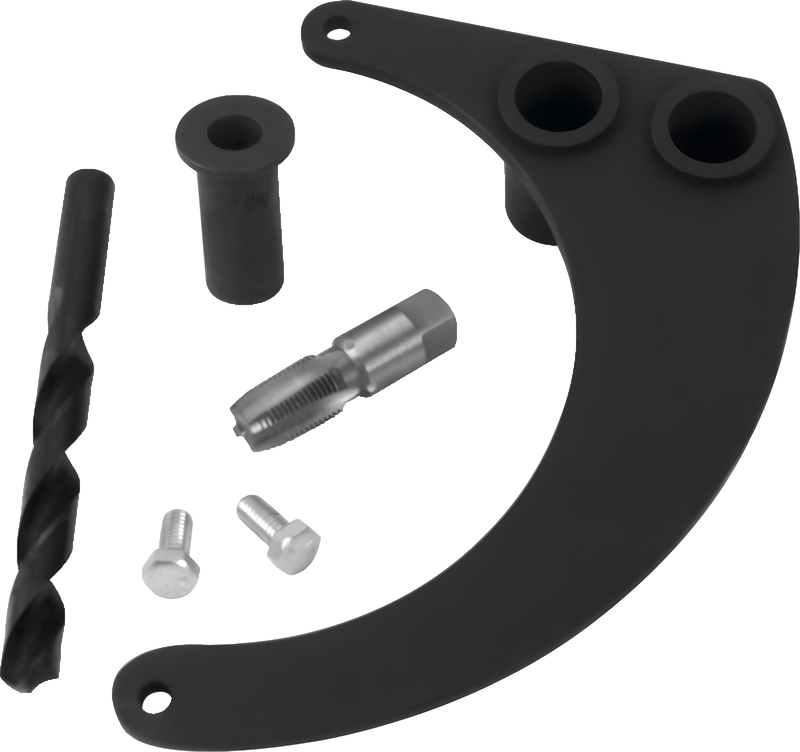

This S&S Cycle drilling fixture is an essential tool for accurately locating and drilling transmission case holes on 2007-2016 Harley-Davidson Touring models. It is specifically required when installing a T-Series engine in conjunction with S&S Cycle oil line adapter kit 310-0435. The kit includes the fixture, drill bushing, drill bit, and tap for a complete solution.
When performing a significant engine upgrade like installing an S&S Cycle T-Series engine on your Harley Touring, precision is paramount. This drilling fixture ensures that critical transmission case holes are perfectly aligned and drilled, preventing costly errors and ensuring proper fitment of the oil line adapter kit. It's a specialized tool that simplifies a complex task.
This complete kit provides everything you need to correctly modify your transmission case for the T-Series engine and associated oil line adapter. By eliminating guesswork, it helps achieve a professional-grade installation, critical for the long-term reliability and performance of your upgraded Touring bike. Always refer to the S&S Cycle installation instructions for detailed steps.
What is the primary use of this drilling fixture?
This fixture is used to accurately locate and drill holes in the transmission case of 2007-2016 Harley-Davidson Touring models, specifically when installing an S&S Cycle T-Series engine with oil line adapter kit 310-0435.
Is everything needed for the drilling process included in this kit?
Yes, the kit is comprehensive and includes the drilling fixture itself, a drill bushing, the appropriate drill bit, and a tap to complete the modification.
Will this fixture work for other engine installations or models?
This specific drilling fixture is designed for 2007-2016 Harley-Davidson Touring models and is required for T-Series engine installations in conjunction with oil line adapter kit 310-0435. It is not intended for other applications.
| BRAND | S&S Cycle |
| TYPE | Hardware - Singles |
| SKU | T14-664756 |
| WEIGHT | 2.4 lb |
I have the 124 in a 2002 Harley Davidson Electra glide classic, the best thing I did to my bike was the have this motor installed, the power is A-1 , you can't go wrong with this, I'm very happy with this product by S&S😂💪🏿😎.
