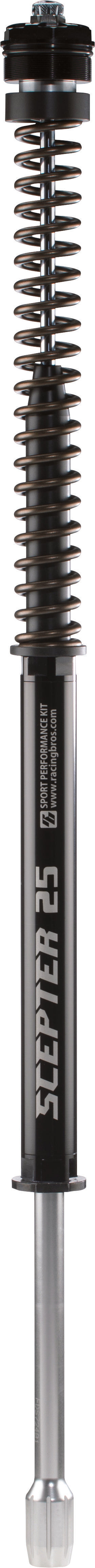

Scepter 25 Fork Cartridge - KIT HVY 39mm Xl883r 2011-2015 Xl1200v 2009-2015 — Harley-Davidson (1995-2015)

Scepter 25 fork cartridge kit for Harley Sportster 883R and 1200V models, featuring a 25mm CNC 7075-T6 damping piston with IFP design for stable, tunable suspension. Offers independent rebound and compression adjustment with 15mm preload range on both sides to dial in your ride.

Features

• 25mm CNC 7075-T6 damping piston with IFP design
• High-strength Cr-Si steel springs for consistent rate and fatigue resistance
• 24-click rebound adjuster
• 24-click compression adjuster
• 15mm preload adjustability on both sides
• Multiple spring rate options available

Specifications

• Brand: Harddrive
• Manufacturer Part #: R0900101-2
• UPC: 191361133220
• Length: 35 in
• Width: 5 in
• Height: 4.25 in
• Weight: 5.9 lbs
• Country of Origin: China (Taiwan)

Fitment

Fits Harley-Davidson Sportster XL883R 2011-2015 and XL1200V 2009-2015.

Frequently Asked Questions

Can I adjust rebound and compression independently?

Yes — the cartridge features separate 24-click rebound and compression adjusters for independent tuning.

Is preload adjustable?

Yes — 15mm of preload adjustability on both left and right sides lets you fine-tune ride height and spring load.

What's included in the kit?

The complete Scepter 25 fork cartridge assembly with damping pistons, springs, and all hardware needed for installation.

Do these fit my 2016+ Sportster?

This kit is specific to 2011-2015 XL883R and 2009-2015 XL1200V models. Later Sportsters use different fork geometry.
