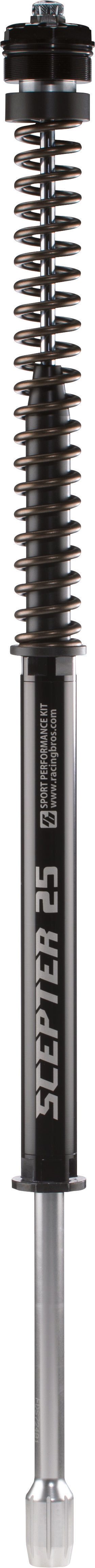

Scepter 25 Fork Cartridge - KIT STD 39mm Xl883n 2011-2015 Xl883l 1991-2015 — Harley-Davidson Super Low, Sportster 1200 Low, Nightster (2005-2015)

Scepter 25 fork cartridge kit for Harley-Davidson Sportster, featuring a 25mm CNC 7075-T6 damping piston with IFP design and Cr-Si steel springs for controlled damping and consistent spring rates. Includes wide-range rebound and compression adjusters plus 15mm preload adjustment on both sides.

Features

• 25mm CNC 7075-T6 damping piston with IFP design
• Cr-Si steel springs for fatigue resistance
• 24-click rebound adjuster
• 24-click compression adjuster
• 15mm preload adjustability both sides
• Multiple spring rate options available

Specifications

• Brand: Harddrive
• Manufacturer Part #: R0900102-1
• UPC: 191361143793
• Length: 35 in
• Width: 5 in
• Height: 4.25 in
• Weight: 5.9 lbs
• Country of Origin: China (Taiwan)

Fitment

Fits Harley-Davidson Sportster XL883N 2011-2015 and XL883L 1991-2015 models with 39mm fork tubes.

Frequently Asked Questions

What adjustments does this cartridge offer?

24-click rebound, 24-click compression, and 15mm preload adjustment on both sides for tuning to your weight and riding style.

Will this fit my 2016+ Sportster?

This cartridge is designed for XL883N 2011-2015 and XL883L 1991-2015. Verify fitment with the manufacturer for other model years.

Can I adjust the spring rate?

Multiple spring rate options are available separately. The kit comes with one spring rate — contact Harddrive for alternate rates.

What material are the springs made from?

High strength Cr-Si steel, engineered for consistent spring rates and fatigue resistance.

Is professional installation required?

Fork cartridge installation requires disassembly of your fork tubes. Professional installation is recommended.
